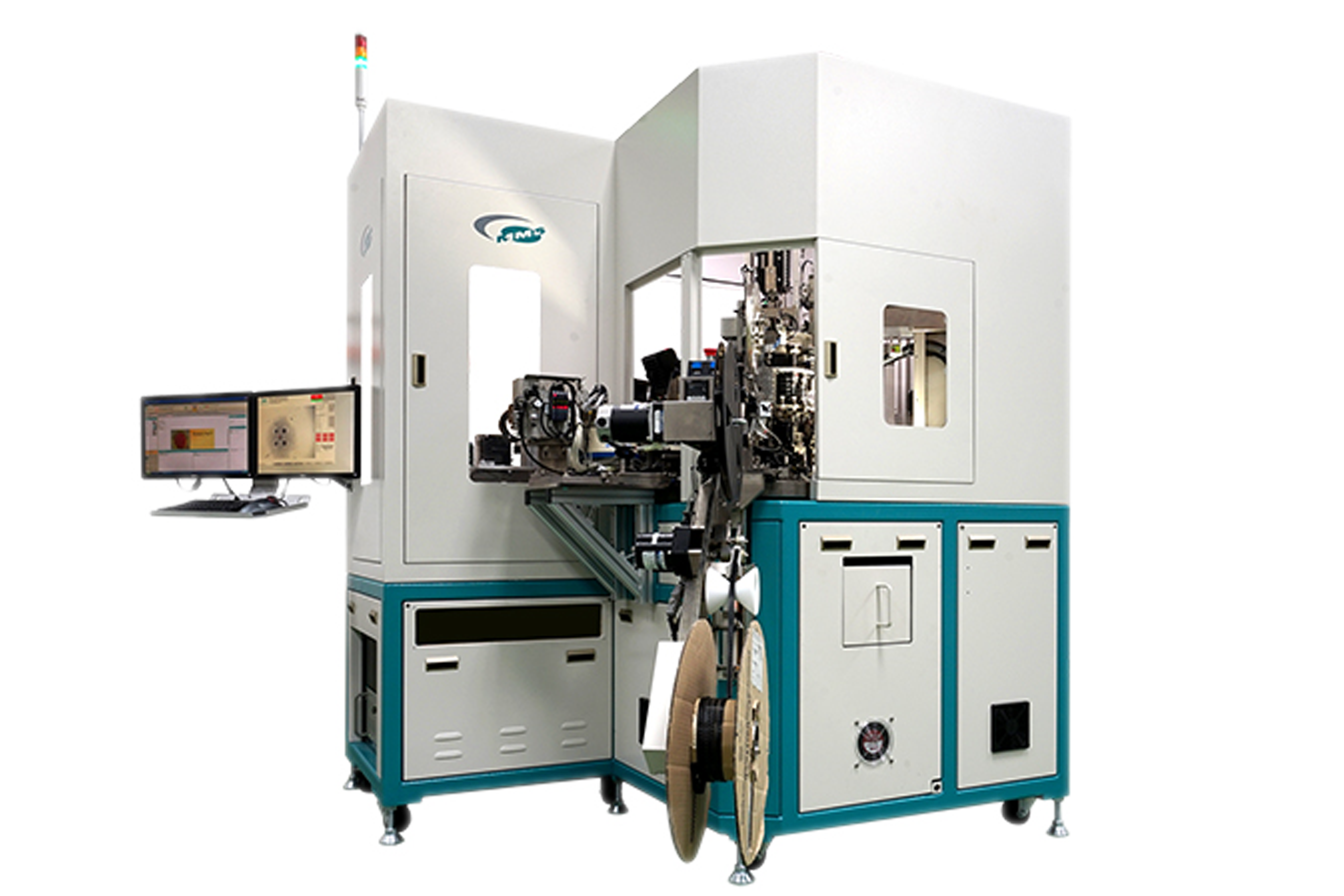

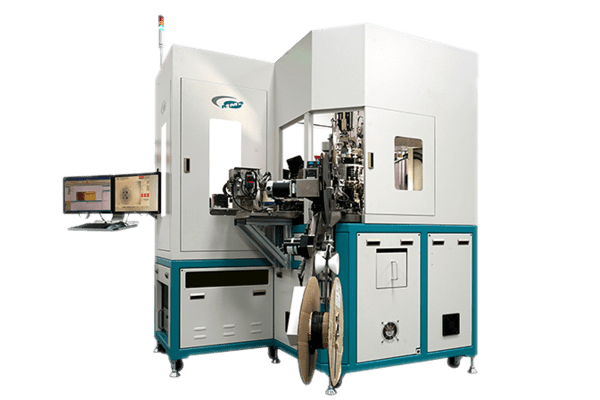

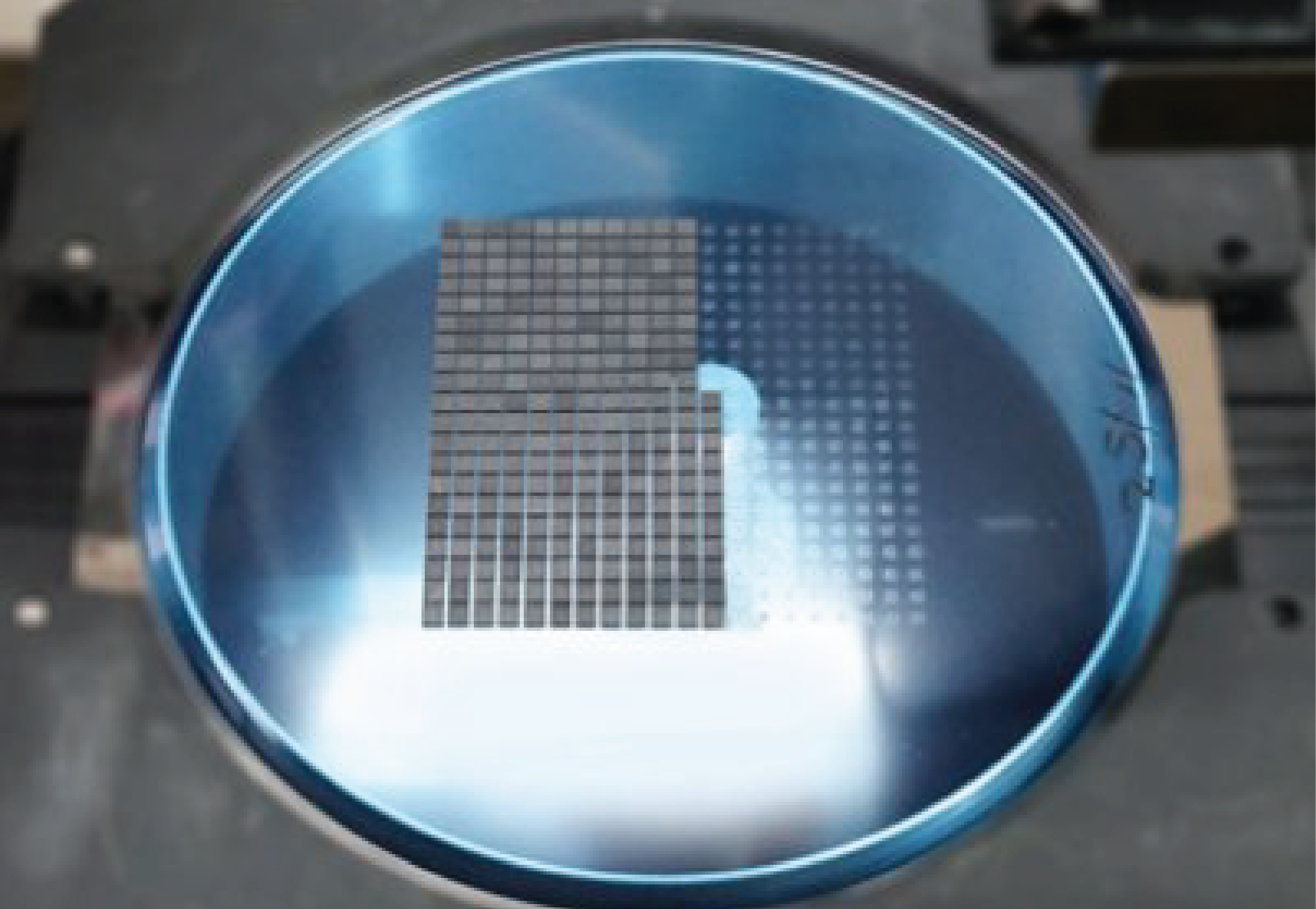

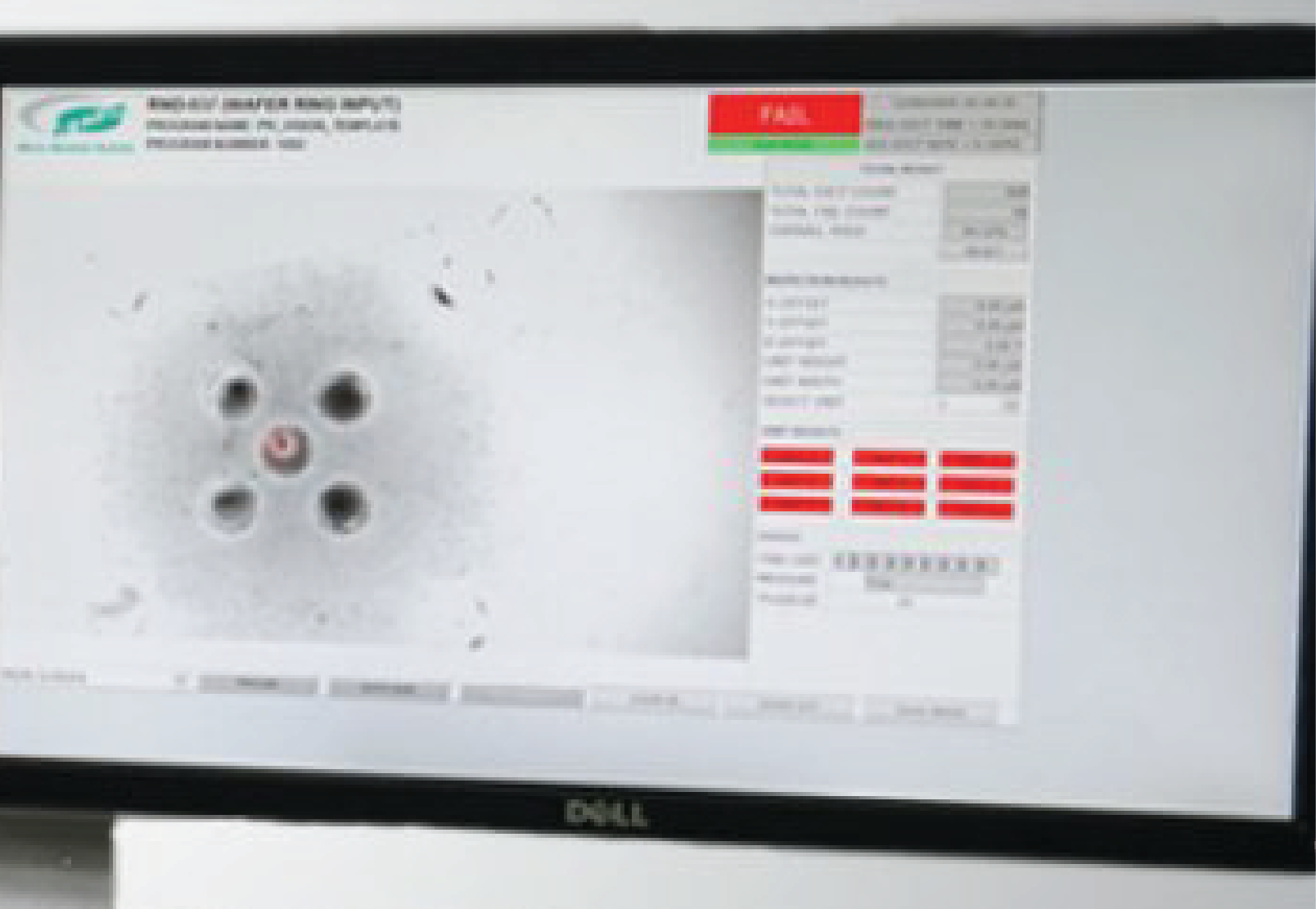

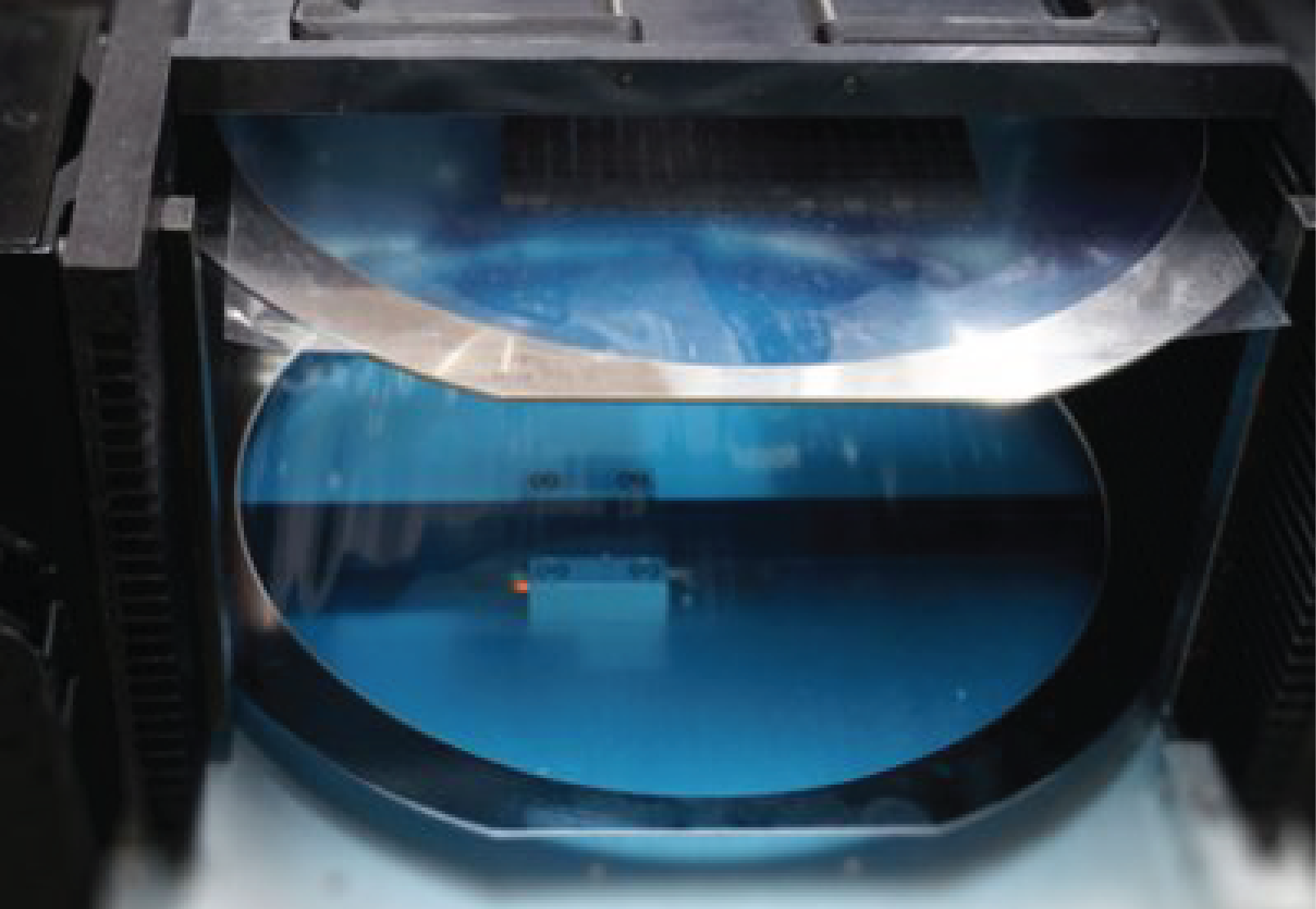

With the BT 152 film frame/wafer input, we offer a solution suitable for a wide range of LED component and semiconductor processes. The handler can be combined with a tray output or our film frame/wafer output module for bin block sorting. In other systems, the input can also be used with an AOI system, packing tested good units into tape and reel. Additionally, the included tester software can map products on the film frame/wafer according to the test results.

Along with the tester hardware, we provide high-speed, high-accuracy test systems tailored to your exact requirements. The system is flexible, future-proof, and its software can map products on the film frame/wafer according to test results. With full network capability, operators can remotely access all production data and machine status, as well as change machine parameters through the network.

Whatsapp

Introduction

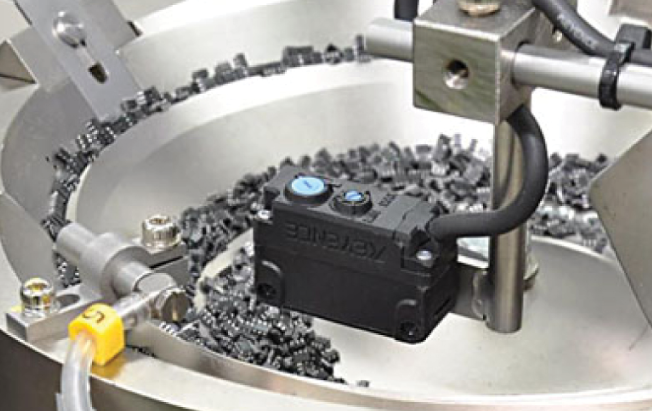

Vibrator Bowl Input

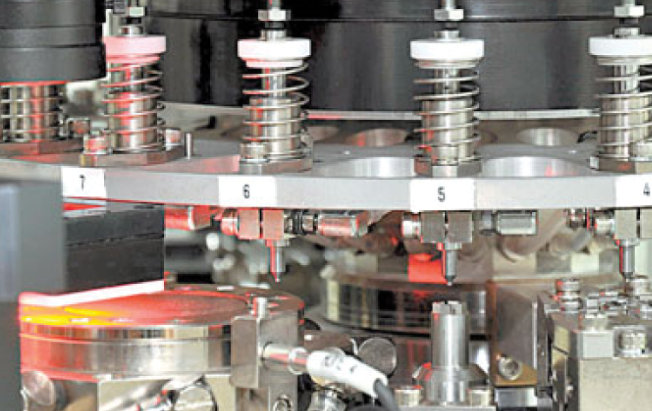

Main Turret Station

The VN 200 is our high-speed rotary platform for all test and packaging options. The turret comes with 20 or 24 fingers, depending on the options chosen and the size of the unit. The standard setup with 4 test sites can be altered by opting for a laser marking, vision station, additional output module or optical test site.

In line with our high standards of quality, the VN200 is built to combine high-speed, accuracy, and reliability with low cost of ownership as well as flexibility of design. The VN200 handles semiconductor packages, like SOT, QFN and SOIC.

Download PDF

Advantages

Features

  • Input for LED components and semiconductor test handlers
  • Over 10K UPH with new blue-tape input

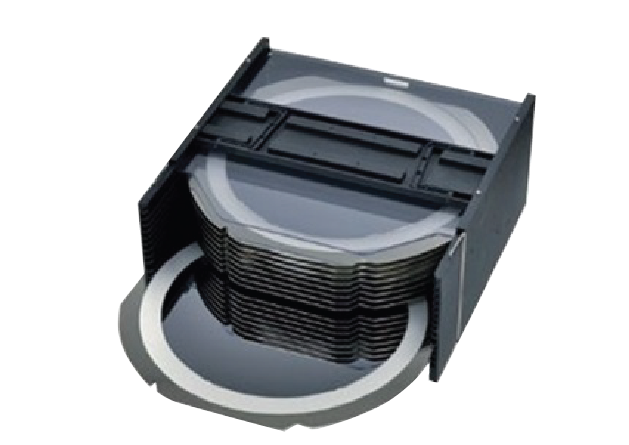

  • Delivered with stretcher and film frame magazine
  • Wafer size: 6 inches
  • Unit sizes range from 1.5 mm × 1.5 mm to 10 mm × 10 mm
  • Applicable to sawn ceramic or silicon based LEDs
  • Product mapping on film frame/wafer
  • High-speed and high-accuracy test system

Applicable Products

Sawn LED-components, Packaged LEDs sawn/ Packaged Semiconductors

Specification

Machine Specifications

Products Sawn LED-components
Packaged LEDs sawn/ Packaged Semiconductors
Specifications Input: Film frame/ Wafer
Output: Tape & Reel, Tubes, Trays, Bulk,
Film frame/ Wafer
Test Option Full Optical, Electrical, AOI
Vision Inspection Optional Cosmetics
UPH Varies, depending on test complexity and output
Footprints 2100mm (W) x 1800m (L) x 2000mm (H)
Warranty 1 year limited excluding wear and tear parts
