Introduction

Glass turret table

6S vision inspection module

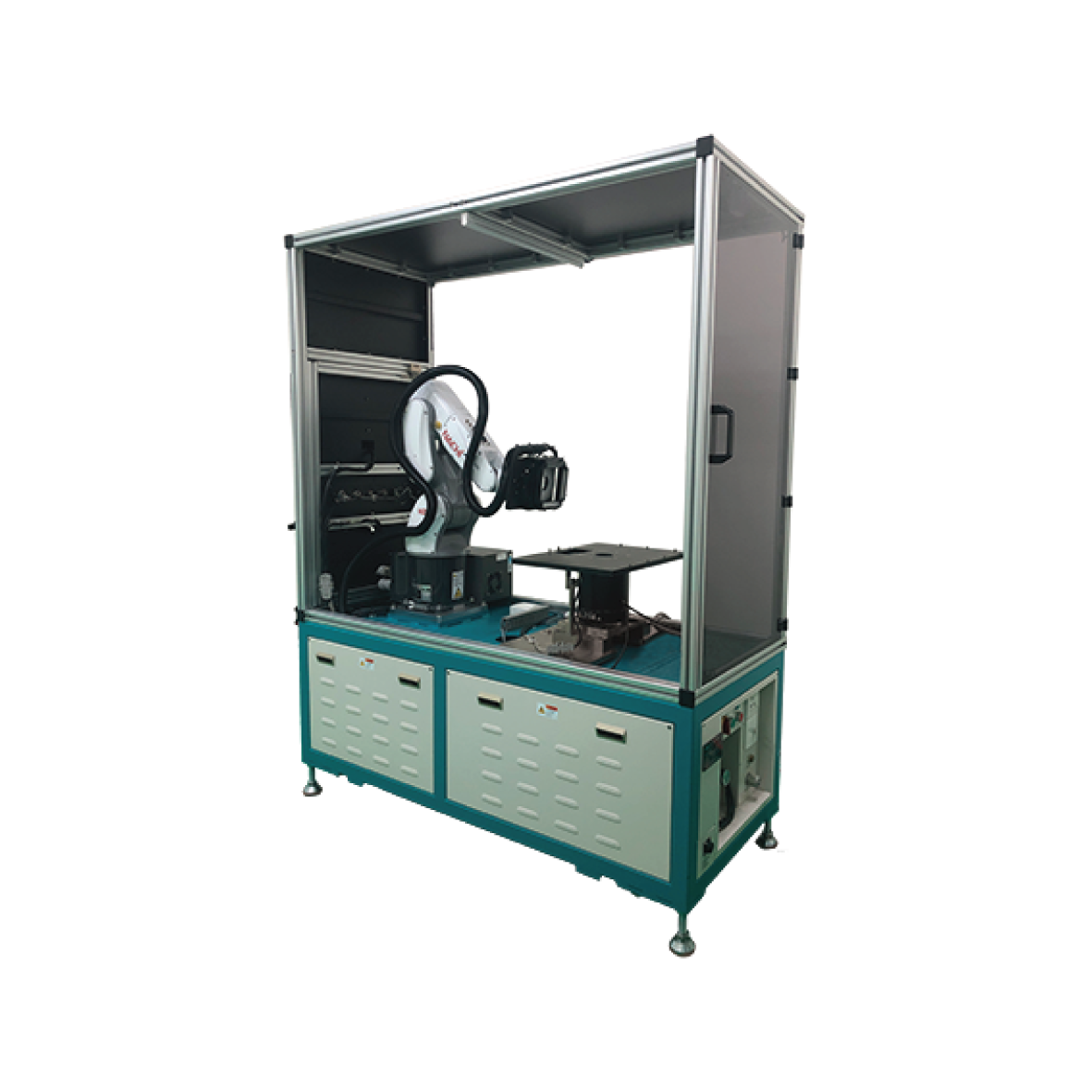

Robot Arm Vision Inspection Machine is designed to utilize advanced vision AI to perform automated multi-point inspection on products with multiple different planes that is hard to reach with a single fixed mounted camera. The vision system (camera, lens & lighting) is mounted on a robot which is highly flexible, useful for large and complex object such as assembly products. It is also highly adaptable to new part types implementation or upgrades for new future requirement of an assembly line may require.

Together with MMS’s in-house developed AI system & software, this versatility positions it as a prime vision inspection choice for industries and sectors including;
a) Semiconductor
b) Metal Processing
c) Automotive
d) Food & Beverage
e) Consumer Electronics
f) Healthcare

Download PDF

Advantages

Features

Advanced AI Vision Inspection System
- MMS’s in-house developed AI vision system designed for advanced inspection needs
Customizable camera types
- Resolution from 1.3MP to 12MP, mono/colour camera options
Flexible FOV with motorized lens
- Multifocal plane enables flexible field of view (FOV) and pixel resolution
Multiple illumination system options
- Variable angle lighting to maximize the range of inspection criteria
6-axis robot design
- Allows flexible and variable-angle inspection
Customizable inspection stage
- Fully flexible 4-side inspection with a round stage
Highly flexible inspection algorithm design to accommodate variable inspection conditions
Offline verifier software for post-vision inspection affirmation
Deep learning inspection algorithm for high-complexity inspection

Applicable Products

Ideal vision inspection choice for industries and sectors including;

Semiconductor

Automotive

Consumer Electronics

Metal Processing

Healthcare

Food & Beverage

Inspection Criteria

OCV & OCR

Screw Height Checking

Connector Pin Condition

Connector Surface Condition

Final Product Assembly Inspection

Present/ Absent Detection

Code Reading & Pattern Matching

Cosmetic Insection for Components

Specification

Machine Specification

Application Areas	Plastic, metal, or materials prone to defects and flaws(crack, scratch ie) including mechanical components, QR code and text labels
Vision Inspection	5S Inspection (Top, Front, Left, Back, Right)
Camera	9MP Mono Camera
Lens	25MM Motorized Lens
System Resolution	~ 20um to 35um
Field of View (FOV)	~ 60mm x 60mm – ~105mm x 105mma
System Accuracy	~ 0.1mm
Inspection Criteria	OCR/OCV, Code Reading (1D/2D), FNI Screw Inspection, Surface Cosmetic Inspection, Connector Inspection, Label Inspection
Warranty	1 year limited excluding wear and tear part

*Specifications can be adjusted accordingly.*

Advanced Industrial Robotic Arm Solutions in Malaysia

In the age of smart manufacturing, the robot arm in Malaysia has become more than just a machine — it’s the heartbeat of industrial progress. From assembly to inspection, automation is transforming how businesses achieve precision, speed, and consistency. Besides At MMSIS, we specialise in delivering intelligent robotic solutions that bridge innovation and practicality for every production line.

For tasks that cannot be fully automated, we deploy collaborative robots (cobots) to support operators. Cobots are robotic arms designed to work safely alongside humans without the need for extensive safety guarding. Compared to traditional industrial robots, they operate at lower speeds but are highly flexible and easy to program, allowing functions to be adjusted quickly to meet changing production requirements.

Our industrial robotic arm in Malaysia is designed to perform complex, repetitive, or high-risk tasks with remarkable accuracy. Equipped with advanced sensors and vision inspection capabilities, each unit ensures consistent product quality while minimising human error. Whether used in electronics, automotive, or semiconductor industries, our robotic systems are built for performance, flexibility, and long-term reliability.

With decades of engineering experience, our team combines technical expertise and customer-centred support to help manufacturers integrate automation smoothly. Every project is guided by precision standards and supported with expert training to ensure seamless operation and maximum efficiency.

Step into the future of smart automation with a partner that understands your industry. Discover how our robot arm solutions can transform your production line — contact us today to start your automation journey.

How does Automated Optical Inspection work?

Automated Optical Inspection works by capturing high-resolution images of PCBs or electronic components and analyzing them using machine vision algorithms. The software compares the images to a reference image or design data and identifies defects in the components or PCBs.

What are the benefits of Automated Optical Inspection?

Automated Optical Inspection provides several benefits, such as high accuracy, speed, and consistency in detecting defects. It also reduces the need for manual inspection, which can save time and reduce labor costs. Additionally, AOI can improve the quality of the final product and reduce the number of defects that pass through to the end customer.

What types of defects can Automated Optical Inspection detect?

Automated Optical Inspection can detect a variety of defects, including missing components, misplaced components, solder bridges, solder voids, open circuits, and shorts. It can also detect surface defects such as scratches, stains, and discoloration.
