PCB Loader / Unloader | LU950

Enhance your production efficiency with our advanced PCB loader and unloader systems, engineered to minimise manual intervention and maximise workflow automation. The MMS Loader and Unloader are fully programmable and easily adaptable to different process carriers, ensuring seamless handling of parts, substrates, or lead frames. Designed to load and unload components from magazines into in-line processes, this system optimises your production flow while reducing human error.

Read More +Read Less −

Our PCB loader and unloader systems meet SMEMA standards, ensuring compatibility with various machines. The LU950 model also integrates effortlessly with MMS’s Inline Shuttle Conveyor, expanding its functionality to support more complex operations. This makes it the perfect choice for electronics manufacturers seeking versatility and efficiency.

For even more comprehensive testing, pair your setup with our LED tester machine, designed for precise, reliable performance testing LED functionality.

Take your production line to the next level—contact us today to learn more!

Whatsapp

Introduction

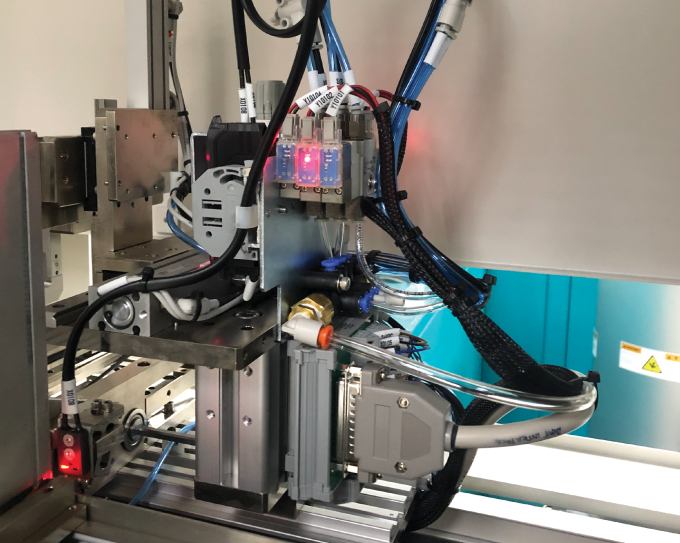

Machine

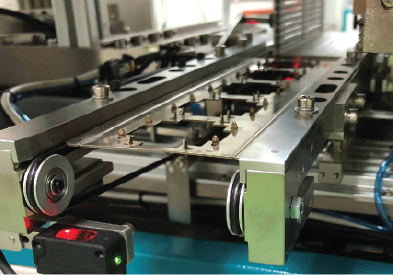

Loading Area

The MMS Loader and Unloaders provide part handling, minimizing operator intervention. Fully programmable, they are adaptable to many types of process carriers. It is designed to load parts, substrates or leadframes from magazines into in-line process systems whereas the Unloaders are similarly designed to index the parts, substrates or leadframes out into magazines.

The LU950 is compatible with SMEMA (Surface Mount Equipment Manufacturing Association) standards.

Download PDF

Features

  • Fully Programmable Operation
    Easily adapts to different process carriers and production workflows with multiple programmable recipes, enabling fast and easy product conversions to minimize manual intervention and setup downtime.
  • Seamless In-Line Integration
    Designed to automatically load and unload components from magazines into in-line processes.
  • SMEMA Standard Compatibility
    Built to meet SMEMA standards, ensuring smooth integration with various existing machines on your production line.
  • Model LU950 Expandability
    Integrates effortlessly with MMS’s Inline Shuttle Conveyor to support more complex operations.
  • NG Product Segregation
    Offers an optional NG (No-Good) product segregation system for the unloader to automatically isolate defective units.
  • Integrated Safety & Control
    Equipped with an easy-to-learn PLC control system and a fully enclosed housing with interlocked safety doors and windows for maximum operator protection.
  • Flexible Conveyor & Handling Architecture
    Supports both single- and dual-lane conveyors with adjustable conveyor width and height. Features soft-touch grippers and active pinch rollers for safe, precise material handling.
  • Precision Testing Pairability
    Compatible with the LED tester machine for comprehensive, precise performance testing of LED functionality.

Industry Applications

  • Electronics Manufacturing
    Automates the handling of parts, substrates, or lead frames by loading and unloading components from magazines into in-line production processes.
  • Surface Mount Technology (SMT) Assembly Lines
    Integrates smoothly with various machines and conveyor systems to maintain continuous workflow and adhere to SMEMA standards.
  • Semiconductor Backend Processing & Testing
    Pairs with specialized equipment like LED testing machines and inline shuttle conveyors to support complex, high-precision inspection and testing workflows.

Advantages

Features

  • Easy and fast conversion with multiple recipes
  • Supports same-side loading and unloading operations
  • Fully enclosed with interlocked doors and windows for operator safety
  • Adjustable conveyor width and height
  • Soft-touch gripper and active pinch rollers
  • Flexible for both single- or dual-lane conveyors
  • Compatible with SMEMA standards
  • Easy-to-learn PLC control

Machine Overview

LOADER UNLOADER / LU950

Modules

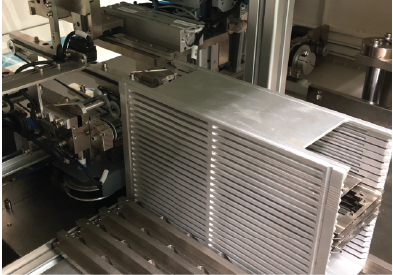

  1. Magazine Shelf
    Holds magazines for loading/unloading
  2. Gripper
    Move substrate from magazine to the conveyor
  3. Conveyor
    Horizontal back and forth movement
  4. Elevator
    Vertically move the shelf
  5. Shuttle
    Transporter lane

Flow Chart

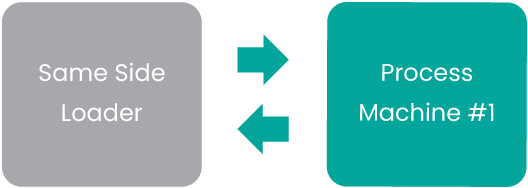

Same Side Loader

All models can cater to dual-lane material handling.

The Same Side Loader is suitable for loading parts into a process machine and unloading parts from the same process machine. Products can be returned to the same or different empty magazines after processing.

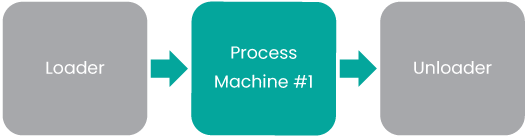

Loader + Unloader

Loader is used for loading parts from magazines into process machine.

Unloader is used for unloading processed parts from process machine into empty magazine.

Products is transferred from loader for process then be unloaded into empty magazine.

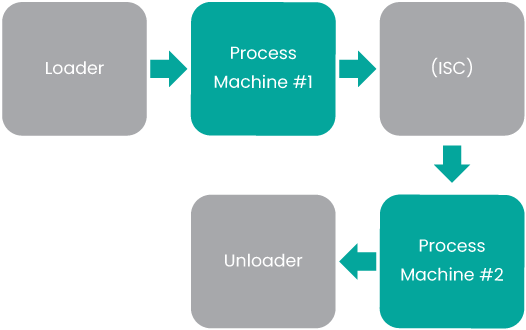

Loader + ISC + Unloader

ISC (Inline Shuttle Conveyor) is used to transfer material from a single lane process machine to a dual lane process machine or vice-versa.

Products is transferred from loader for process then be unloaded into empty magazine.

Applicable Products

Parts, LED substrates, leadframes, and various process carriers

Trays/Boats/Carriers

High-density component tray used as process carrier for semiconductor and LED manufacturing

PCB Substrates

Multi-layer PCB substrate panel for electronic component assembly and circuit integration

LED Substrates

Mounted LED substrate board with multiple high-power LED packages for lighting modules

Leadframes

Precision metal leadframe used in semiconductor packaging and integrated circuit assembly

Specification

Machine Specifications

Products Parts, LED substrates , leadframes and many types of process carriers
Specifications Input: Magazine Loader
Output: Magazine Unloader
Magazine (min-max) Width: 15 mm (0.59 in.) – 172 mm (6.8 in.)
Length: 50.8 mm (2.0 in.) – 317.5 mm (12.5 in.)
Height: 50.8 mm (2.0 in.) – 279.4 mm (11.0 in.)
Parts (min-max) Width: 15 mm (0.59 in.) – 160 mm (6.3 in.)
Length: 50.8 mm (2.0 in.) – 317.5mm (12.5 in.)
Thickness: 0.1 mm (0.004 in.) – 18 mm (0.71 in.)
Control PLC Touch Screen
Footprint 720mm (W) x 1270mm (L) x 2020mm (H)
Warranty 1 year limited excluding wear and tear parts

FAQ

What is the primary function of the MMS PCB loader and unloader systems?

They are engineered to minimize manual intervention and maximize workflow automation by automatically loading and unloading parts, substrates, or lead frames from magazines into in-line processes.

Are these systems compatible with other machines on my production line?

Yes, the PCB loader and unloader systems meet SMEMA standards, ensuring seamless compatibility and communication with various existing machines.

What additional equipment can be integrated with the LU950 model?

The LU950 model integrates effortlessly with MMS’s Inline Shuttle Conveyor, allowing it to support more complex operations.

Can these systems be used alongside testing equipment?

Yes, you can pair your setup with MMS’s LED tester machine to perform precise, reliable testing of LED functionality alongside your handling process.
