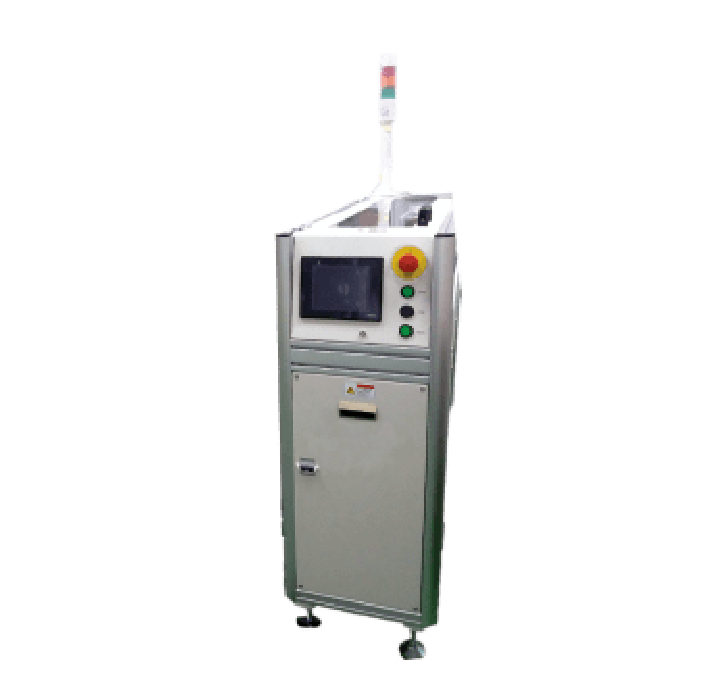

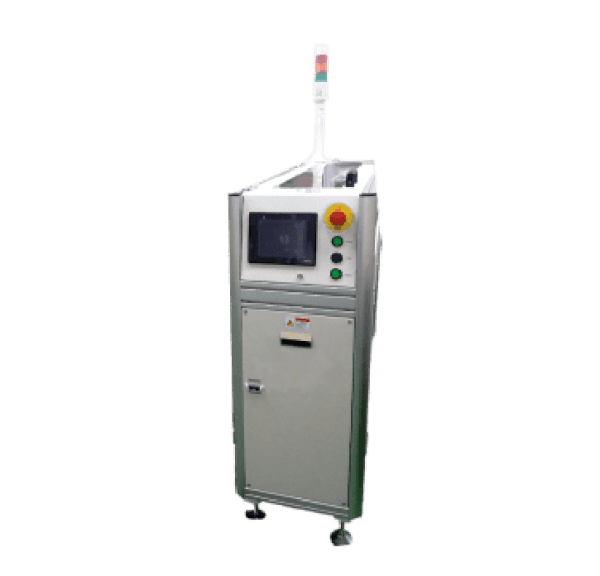

The Inline Shuttle Conveyor will greatly enhance your current conveyor production line with improved flexibility and efficiency. With the application of a MH-ISC, a standard SMEMA based machine with dual lane capability can be inserted into a single lane conveyor production line to increase the line throughput without any customization. In a dual lane conveyor production line, it can also allow you to swap parts between the two lanes. The machine lane spacing can vary from the standard
production conveyor line spacing, and parts can be transferred in either direction.

The MH-ISC system and Loader Unloader machine is compatible with SMEMA (Surface Mount Equipment Manufacturing Association) standards, such as our LU950 Loader and Unloader machine.

Whatsapp

Introduction

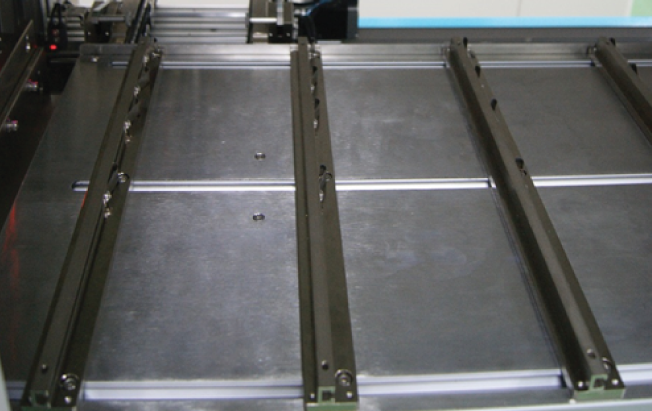

Loading Area

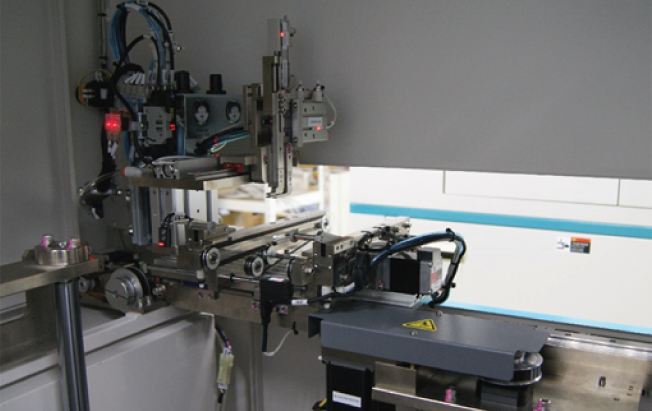

The MMS Loader and Unloaders provide part handling, minimizing operator intervention. Fully programmable, they are adaptable to many types of process carriers. It is designed to load parts, substrates or leadframes from magazines into in-line process systems whereas the Unloaders are similarly designed to index the parts, substrates or leadframes out into magazines.

The LU950 is compatible with SMEMA (Surface Mount Equipment Manufacturing Association) standards.

Download PDF

Advantages

Features

  • Adjustable conveyor width
  • SMEMA communication
  • Small footprint
  • Multiple programmable recipes
  • Adjustable conveyor height (SMEMA standard)
  • Capable of dual lane, dual direction feeding
  • Multiple programmable conveyance position per recipe
  • Easy to learn PLC control

Flow Chart

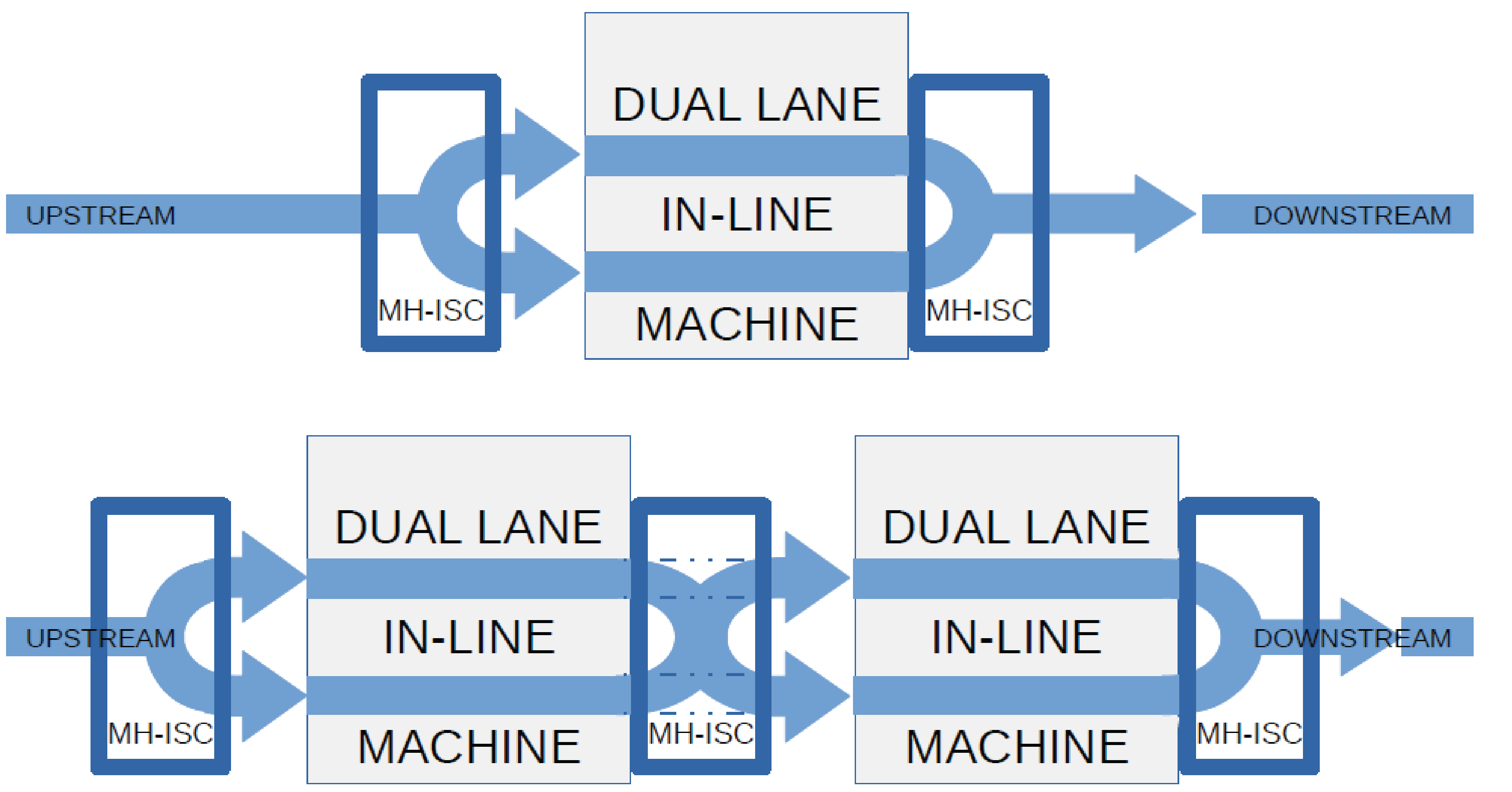

MH-ISC Application In Single Lane Conveyor Production Line

*Part swapping between dual lanes is subjected to upstream and downstream machine capability to support such features*

Linking a dual lane in-line machine into a single lane conveyor system can decrease the TAKT time for the production line, especially when long processing time is needed.

MH-ISC Application In Dual Lane Conveyor Production Line

*Subjected to upstream and downstream machine capability to support such features*

A dual lane conveyor line can be operated as two distinct lanes, or applying FIFO* to lower the TAKT time.



Part swapping between dual lanes is possible.

Applicable Products

Parts, LED substrates, leadframes, and various process carriers

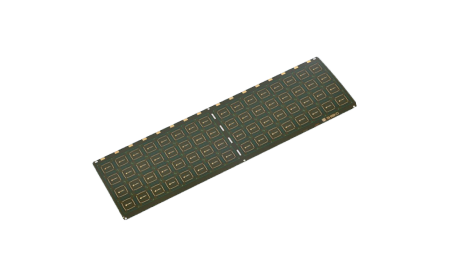

Trays/Boats/Carriers

High-density component tray used as process carrier for semiconductor and LED manufacturing

PCB Substrates

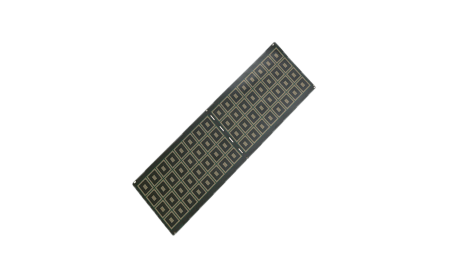

Multi-layer PCB substrate panel for electronic component assembly and circuit integration

LED Substrates

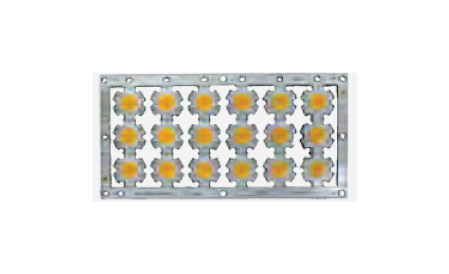

Mounted LED substrate board with multiple high-power LED packages for lighting modules

Leadframes

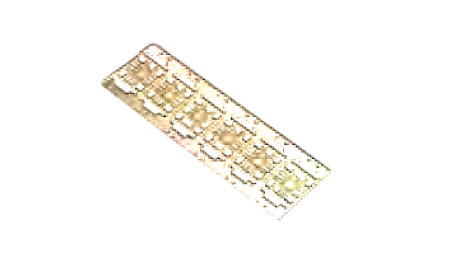

Precision metal leadframe used in semiconductor packaging and integrated circuit assembly

Specification

Machine Specification

Products Parts, LED substrates , leadframes and many types of process carriers
Specifications Input: Magazine Loader
Output: Magazine loader
Parts (min-max) Width: 15 mm (0.59 in.) – 160 mm (6.3 in.)
Length: 50.8 mm (2.0 in.) – 317.5mm (12.5 in.)
Thickness: 100 mm (0.004 in.) – 18 mm (0.71 in.)
Control PLC Touch Screen
Footprint 720mm (W) x 1270mm (Lx) 2020mm (H)
Warranty 1 year limited excluding wear and tear parts
