Glass turret table

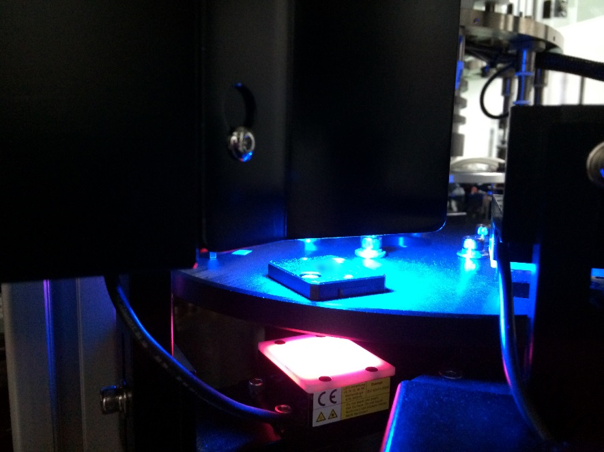

6S vision inspection module
MMS’s Lens Inspection System machine is a fully automated inspection system, designed to perform defect inspection for transparent/semi transparent lens. It is capable of 2D defect inspection, and 6S inspection for singulated units up to 8mm x 8mm.
Features
- Patterned lens (Fresnel) inspection
- Comprehensive and flexible inspection tools
- Customizable vision algorithm
- High defect coverage / low false failure rate
- 6S vision inspection (top, bottom, sides)
- 2D defect inspection
- PC-based data collection and reporting
- Customizable input/output mapping
- Optional NAS system for expanded image storage

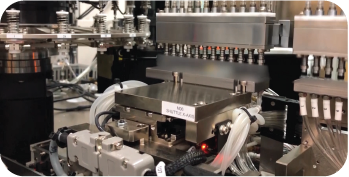

Glass Turret AOI Machine/ VI500
Modules

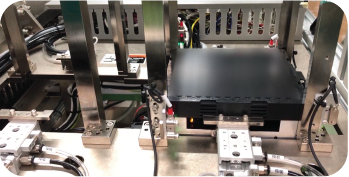

- Magazine Input Loading
- Vision Inspection
- Aligner Vision
- Sorting Bin

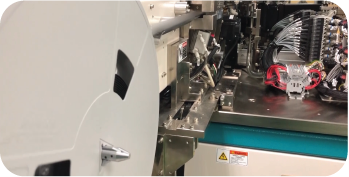

- Tape and Reel Module
- Reject Bin
Flowchart
Lenses in full trays inside magazines are transferred to the tray pick-and-place station.

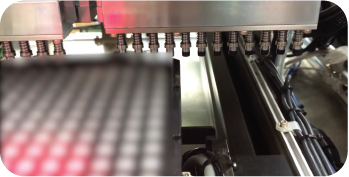

The tray pick-and-place unit picks up the lenses from the trays and transfers them to the turret.

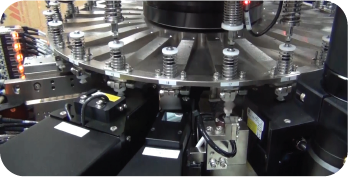

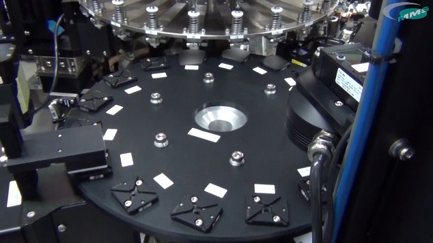

The turret indexes the lenses and carries them through the vision inspection modules.
There are three vision inspection modules on the first turret table and two on the second table (a total of five).
Units that pass inspection are taped into reels.
Rejected units are sorted into the reject bin.
Transparent/ Semi-Transparent Lens
6S Vision Inspection (Top, Bottom, 4 Sides)
Dents
Scratches
Holder Short Mold
Foreign Material
Fresnel Short Mold
Contamination
Black Dot
Bubbles
Machine Specifications
| Products | Transparent/ Semi Transparent Lens | |
| Specifications | Input: | Wafer Tape, Tray |
| Output: | Wafer Tape, Tray, Tape & Reel | |
| Test | Cosmetic and Measurement | |
| Vision Inspection | 2D defect inspections 6S (top, bottom, front, back and sides) |
|
| UPH | 7500 (depending on customer product) | |
| Footprint | 1750mm (W) x 1300mm (L) x 1850mm (H) | |
| Warranty | 1 year limited excluding wear and tear parts | |
