LED Sorter | MB256

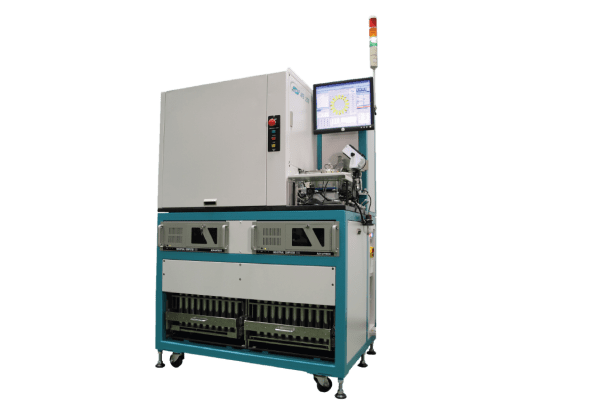

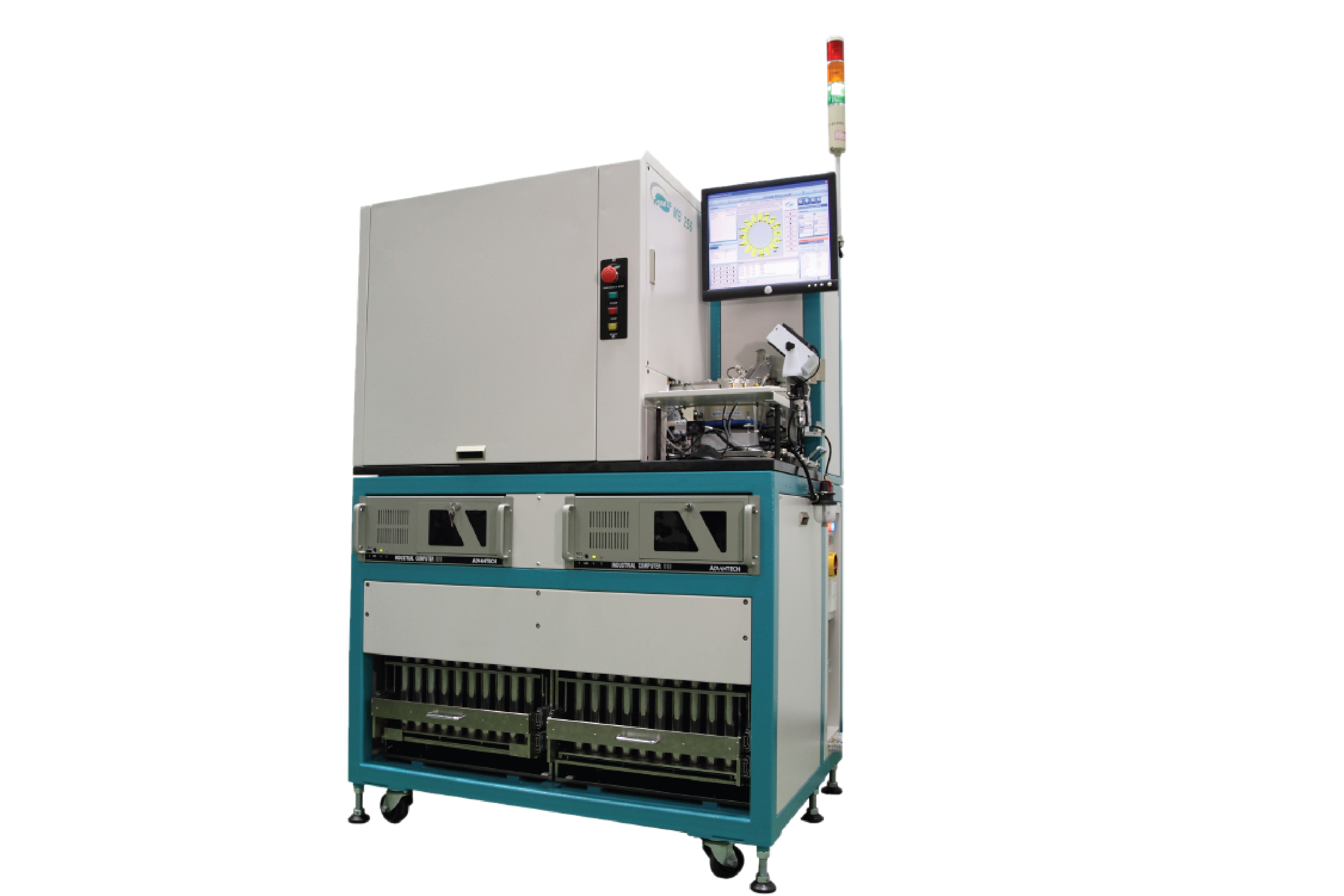

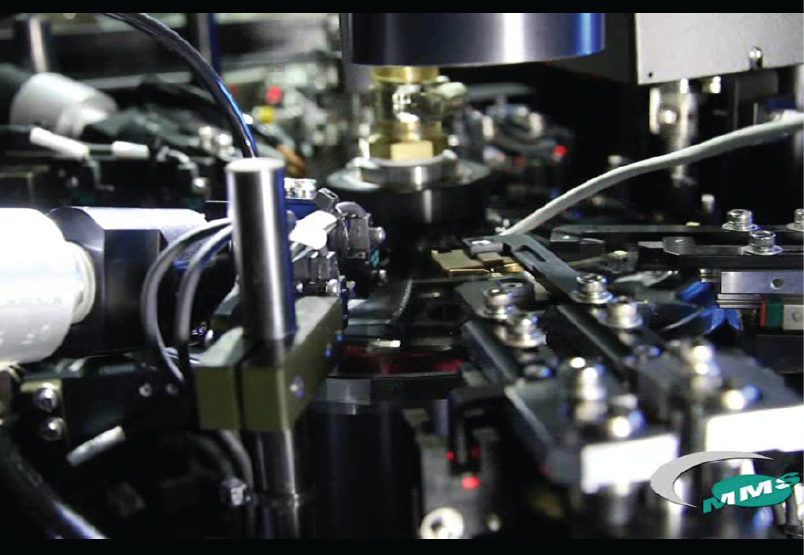

The MB256 LED Sorter is the world’s first vertical sorter designed to eliminate mixed devices. Combining high speed, high accuracy, and low cost of ownership at an economical price, it is ideal for most medium-power and low-power top-view LED packages, with short conversion times.

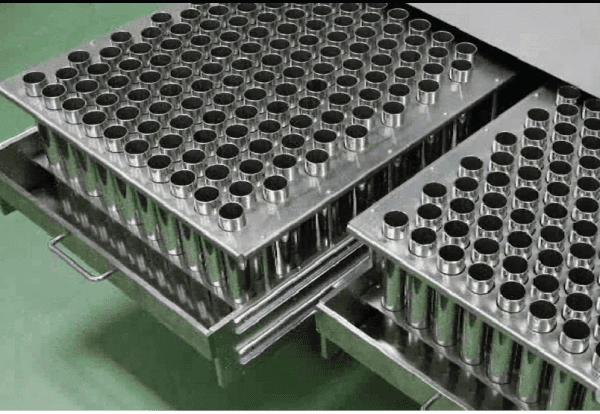

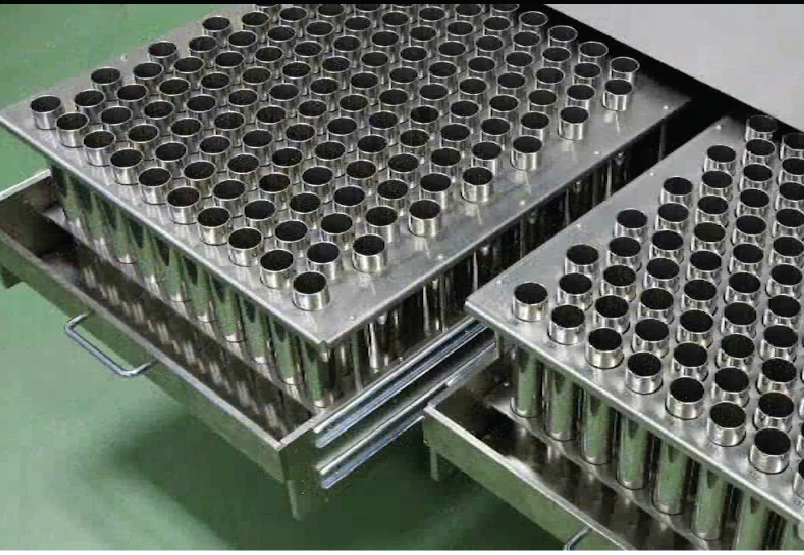

Its unique sorter design prevents unit mixing—an issue common in many other systems—and supports extremely high speeds, even for larger units like 5353. Bins can be assigned either dynamically or statically to sorting categories.

The MB256 is available with a variety of options, including:

128 or 256 bin configurations
Single or dual test sites for electrical and optical testing
Integrated vision check
RFID bin identification
Automatic label printer

Introduction

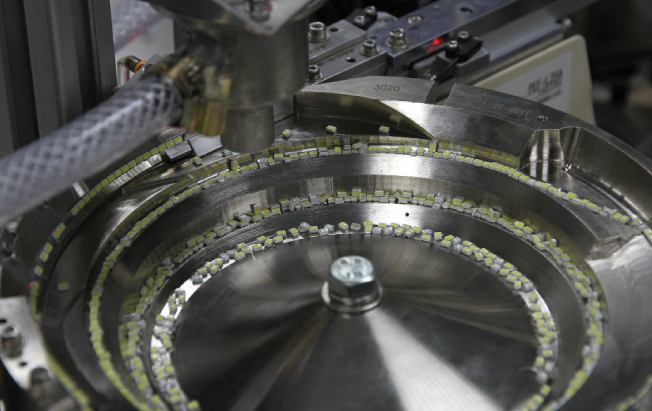

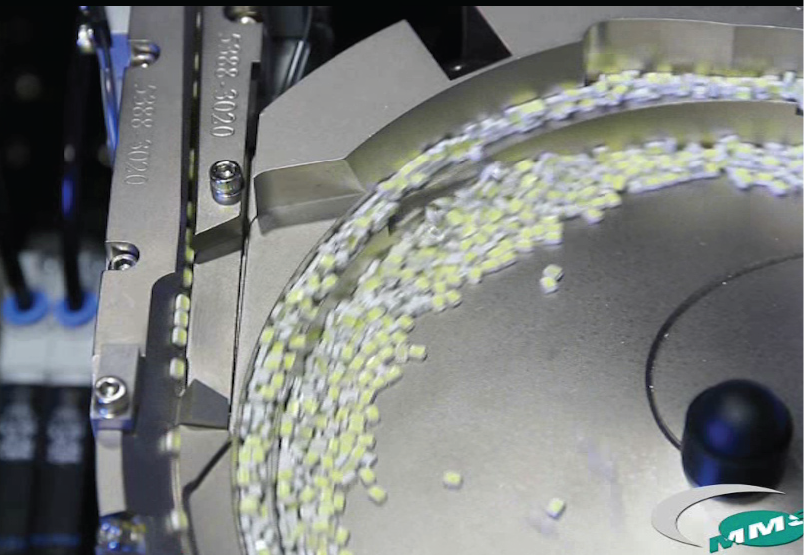

Vibrator Bowl

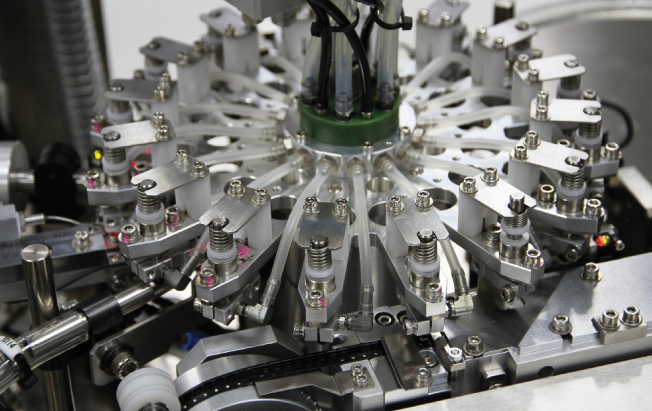

16 Head Turret Table

The MV 160 is specifically designed for tape & reel packing. Its economic design makes it an excellent platform for assembly and packing tasks. The machine is also capable of in pocket tape vision inspection, checking the orientation of the unit before it goes into the reel.

Download PDF

Advantages

Features

20K UPH at 100 ms test time across a full range of 256 bins
Breakthrough bin identification concept to prevent mixing
Automatic barcode label printing system eliminates operator mislabeling
Sorted units can be removed without stopping the machine, maximizing productivity
Integrated statistics collection for data management and logging
Easy product conversion
Unit orientation correction prior to testing

Applicable Products

LED

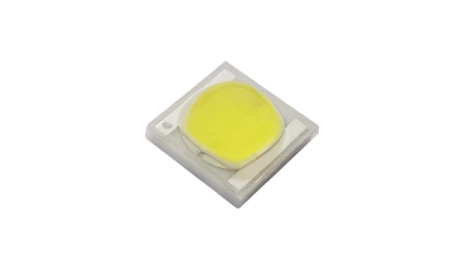

LED 3535

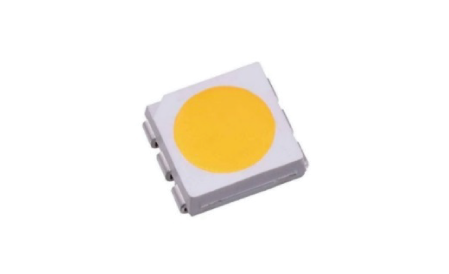

LED 5050

LED 3014

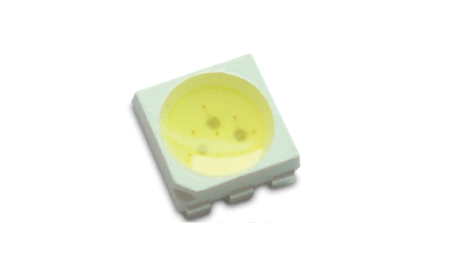

LED 5060

Specification

Machine Specifications

Products	LED : Top view (Chip, PLCC), Side View (PLCC)
Specifications	Input:	Vibrator Bowl
	Output:	Bins in various size and combinations
Test Method	Single side surface contact
Vision Inspection	2D Package/ Orientation
UPH	Rated UPH 20k @ test time 100ms ( depending on product )
Footprint	1170mm (W) x 900m (L) x 1850mm (H)
Warranty	1 year limited excluding wear and tear parts
