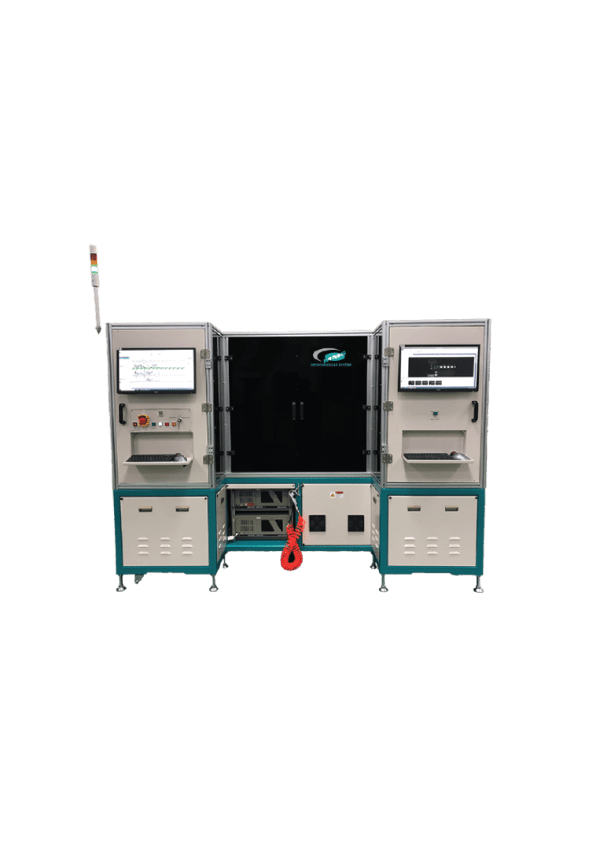

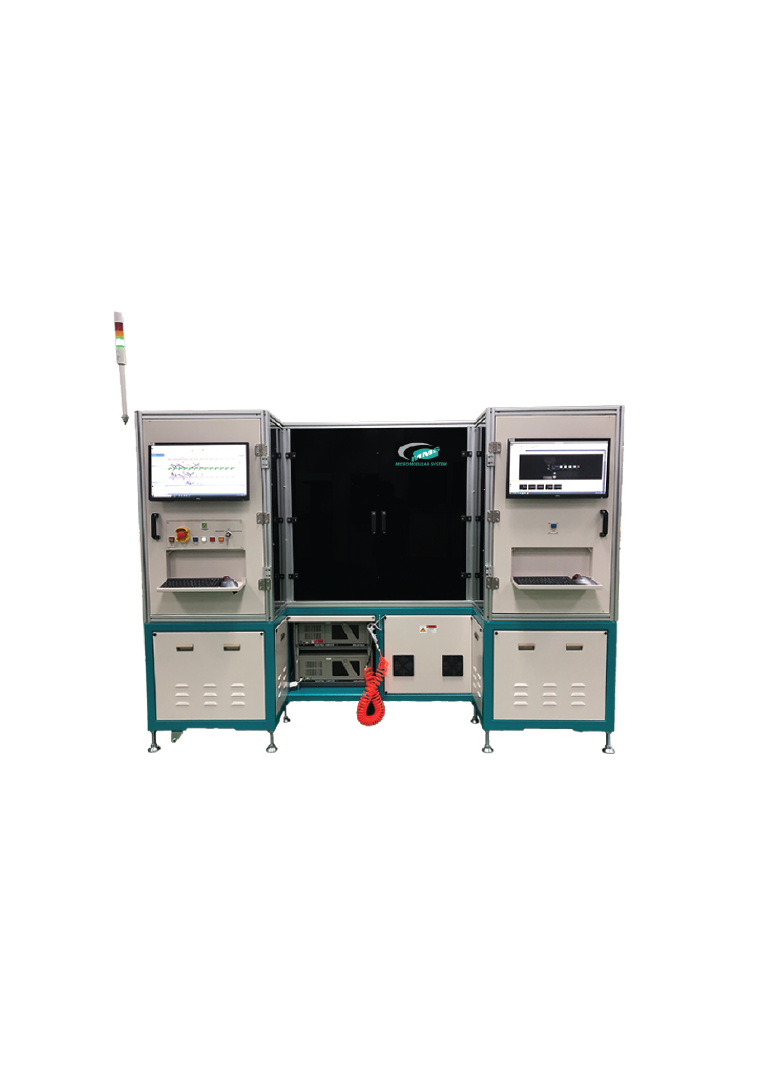

Laser Mark Machine | iTT200

With our iTT200 Laser Mark Machine, you no longer have to worry about aligning, positioning, and setting up your laser marking system manually again.

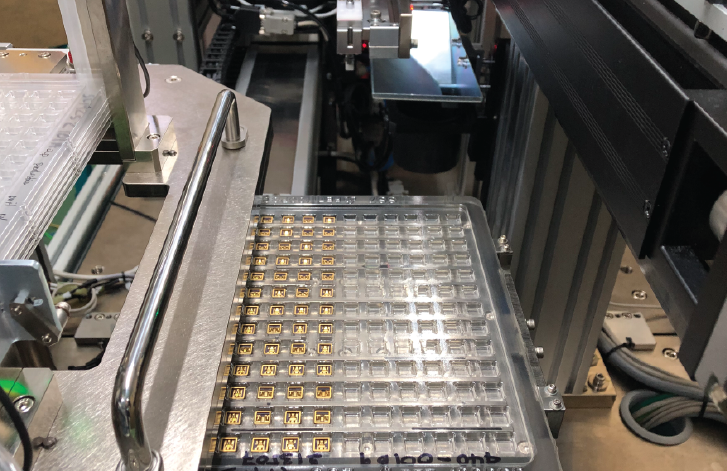

Its unique parts tray design makes it stand out from other laser marking machines on the market, as it enables higher productivity. Simply load the unique parts tray with the desired parts, and place the tray into the machine. The rest of the process is fully automated, including code reading and quality assurance. Marks are far more accurate, quicker, and effortless.

Whatsapp

Introduction

Glass turret table

6S vision inspection module

The VI500 is a high-speed, 6S vision inspection system for small parts, made of plastic or metal. Coming from a vibrator bowl input, parts are presented to the vision system on a specially treated glass carrier and sorted into bins. It features realtime display of image acquisition & defects inspected.

Depending on the size and geometry of the parts, the machine inspects the product on the fly making the maximum speed up to 40,000 UPH. The VI500 is designed for fast conversion and is delivered including the complete vision system.

Download PDF

Advantages

Features

  • Unique tray loading system: load and perform laser marking on 13 parts at a time instead of one

  • Fully automated PCV and X-Y panel positioning aligned to the laser mark

  • High accuracy with PR Vision (x1) to adjust product positioning offset

  • Automatically transfers products from the tray into the laser marker and then into the output tray

  • Integrated code reader vision system reads each part’s 2D code before and after laser marking

    • Acceptable units are transferred; defective units are automatically rejected into the bin
  • Suitable for ceramic and LED units
    • Laser specifications and supported materials can be customized upon request
  • Minimum marking area of approximately 1.92 × 0.48 mm
  • Designed for ISO Class 7 (Clean Room 10K) usage
  • Marking time: 1 to 1.5 seconds per part, 13 to 19.5 seconds per full row
  • Suitable for marking model name, labels, series and version number, codes etc

Machine Overview

Glass Turret AOI Machine/ VI500

Modules

  1. Input
    Product in Tray

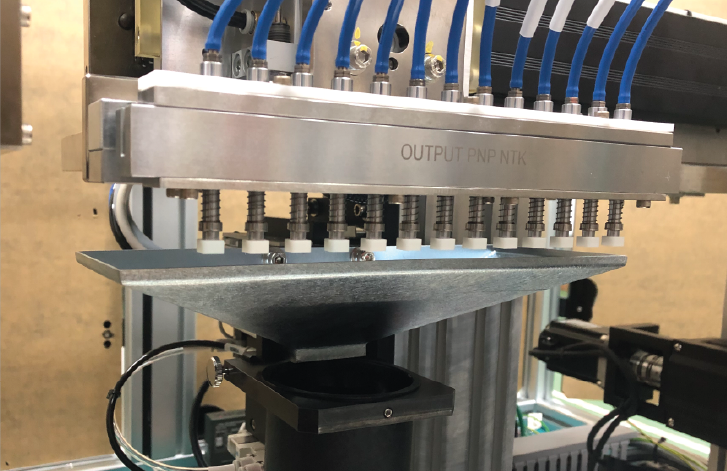

  2. Pick & Place
  3. PR Vision

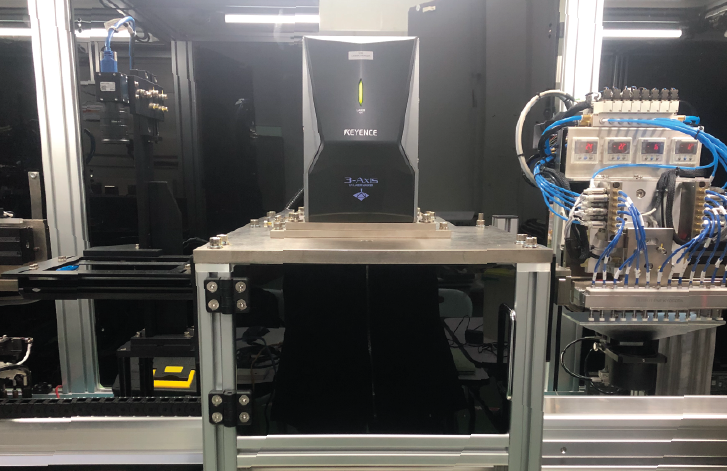

  4. Laser Marker Module
  5. Vision Inspection
  6. Output
    Tray

Specification

Machine Specification

Products Lens
Specifications Input: Tray
Output: Tray
UPH 1200 (depending on user product)
Footprint 2800mm (W) x 1500mm (L) x 1800mm (H)
Warranty 1 year limited excluding wear and tear parts
