Large-Area LED Test System | LE700

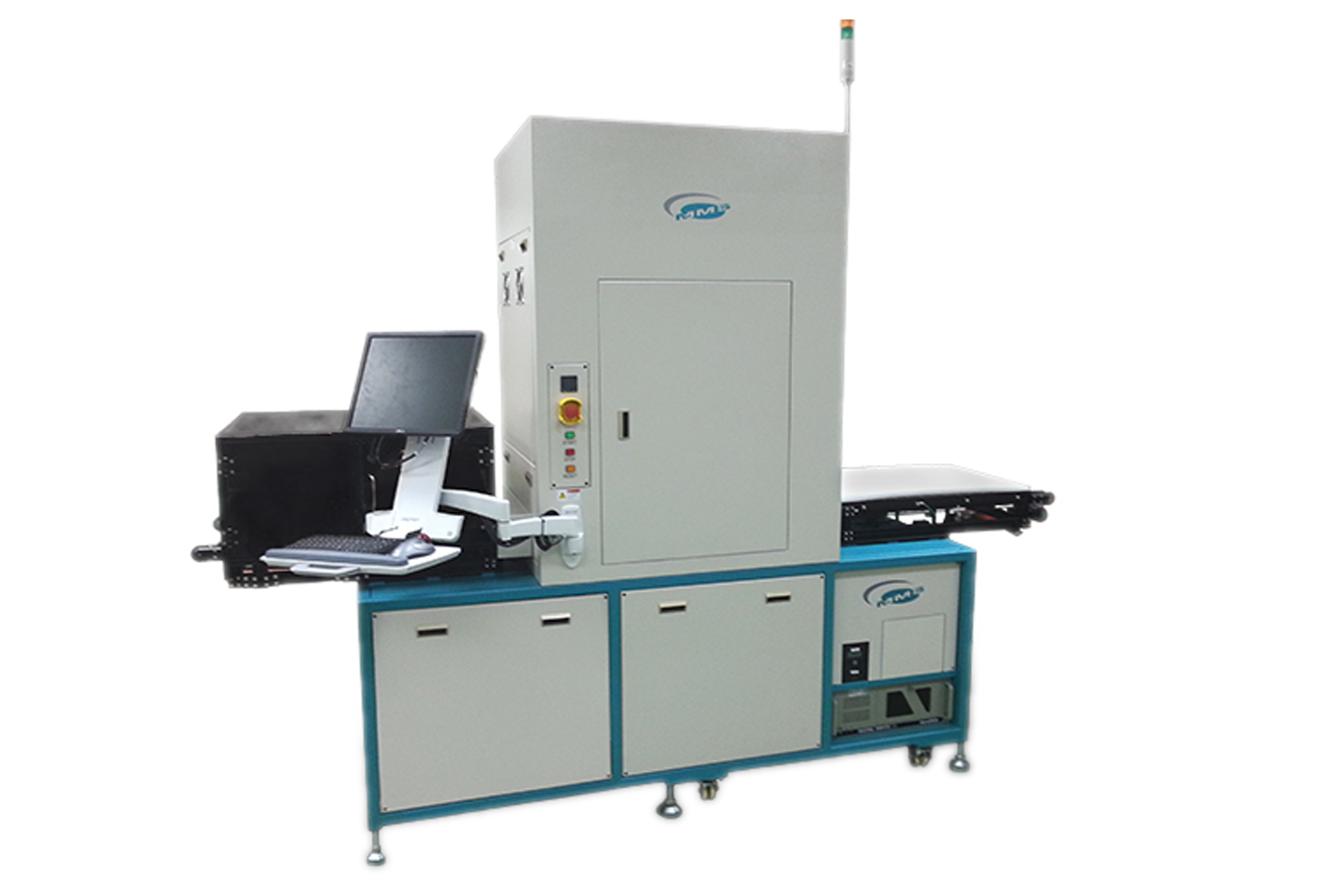

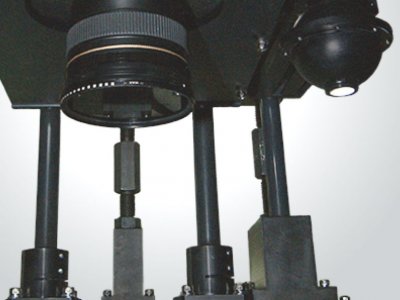

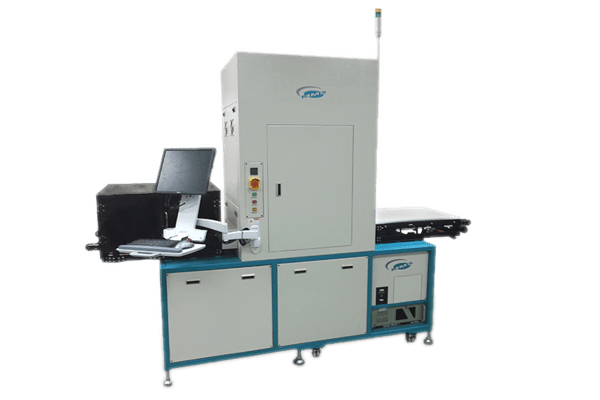

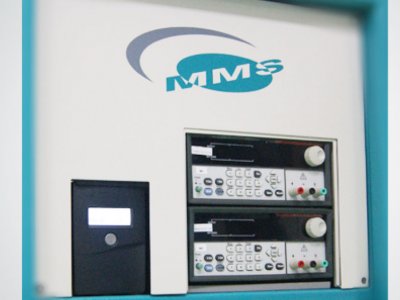

The LE700 is an in-line test machine for large-area LED light engines and luminaires. It analyses single LED components with a combined measurement using an imaging colorimeter and a spectrometer. With its automatic adjustment, unique probing system, and auto-adjusting conveyor system, it is highly flexible and self-reliant to the degree that no operator intervention is necessary for product changes.

An optional pre-heating station significantly lowers the LED stabilization time, and the test itself can be temperature-controlled. The test chamber is sealed against external light, ensuring results are accurate and precise.

Whatsapp

Introduction

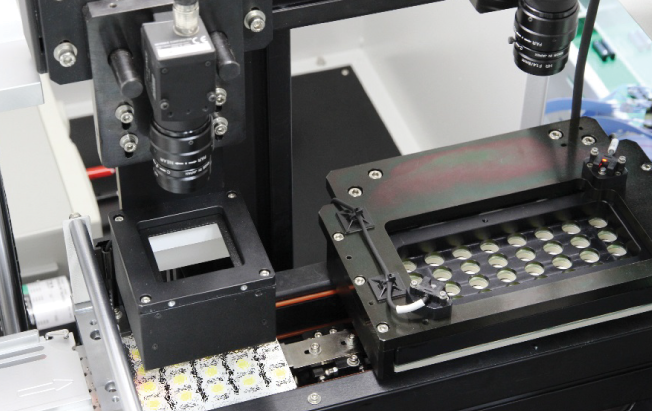

Dim Test

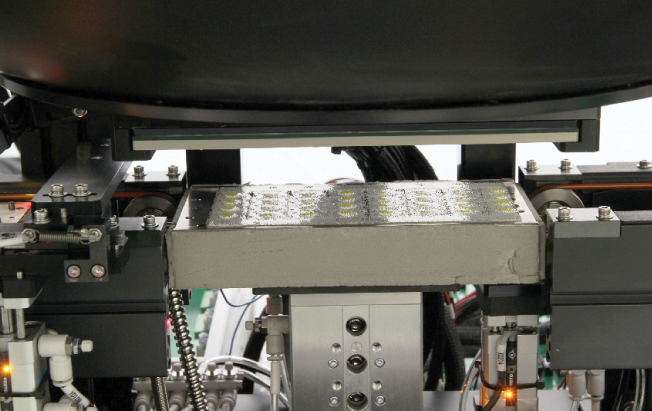

Optical Test

The AT100 is a fully auto testing machine for Chip-On-Board. It is capable of running dim test, optical test and electrical test. With variable inputs like magazine or conveyor, the system can be run stand-alone or seamlessly integrated into a production line. A wide range of form factors can be tested by switching the probe cards.

The system processes 100 substrates per hour, depending on the number of LEDs on the substrate and the test time.

Download PDF

Test Parameter

Test Parameters

Electrical Test

  • Forward Voltage
  • Forward Current

Optical Test Total LEDs in Light Sheet (using spectrometer)

  • Luminous Flux
  • Radiant Flux
  • CIE xy
  • CIE uv
  • CIE u’v’
  • Peak Wavelength/
  • Centroid Wavelength
  • CRI
  • CQS
  • GAI
  • FSCI
  • Luminous Efficacy
  • SDCM to target
  • Optical Test each LED in Light Sheet (Using Zemax) with similar test parameter as above except CQS, GAI & FSCI

Advantages

Features

  • Designed to handle large-area LED light engines and luminaires
  • Automatically adjusting, with a unique probing system

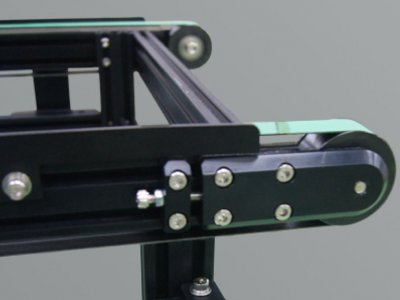

  • Auto-adjusting conveyor
  • Optional pre-heating station lowers the LED integration time; the test can be temperature-controlled
  • Results are mapped, and faulty units are marked by laser or ink

Applicable Products

Large-Area LEDs, Light Engines, Luminaires

Specification

Machine Specifications

Products Large-area LEDs, Light engines, Luminaires
Specifications Input: Conveyor
Output: Conveyor
Tests Absolute & relative optical, electrical
Vision Inspection Optional Cosmetics
UPH 100(@ test time 20s; integration time 10s)

(may vary depending on user product and configuration)
Footprints 3500mm (W) x 1000m (L)
Warranty 1 year limited excluding wear and tear parts
