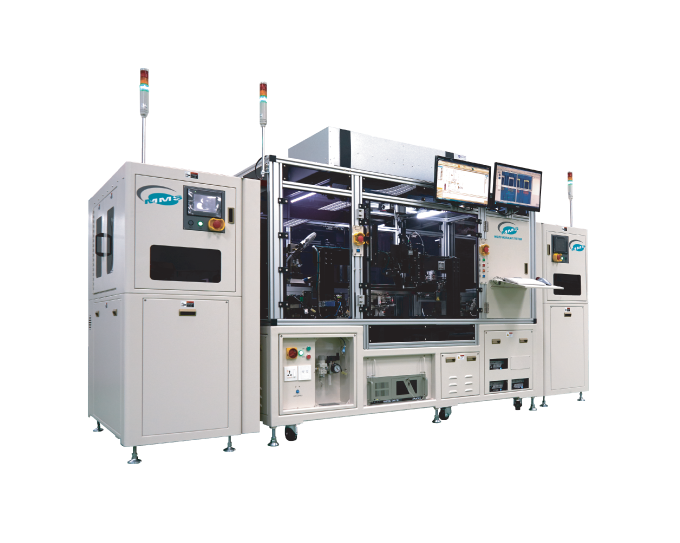

Wafer Wire Bond Inspection Machine | WI300
Wafer Magazine

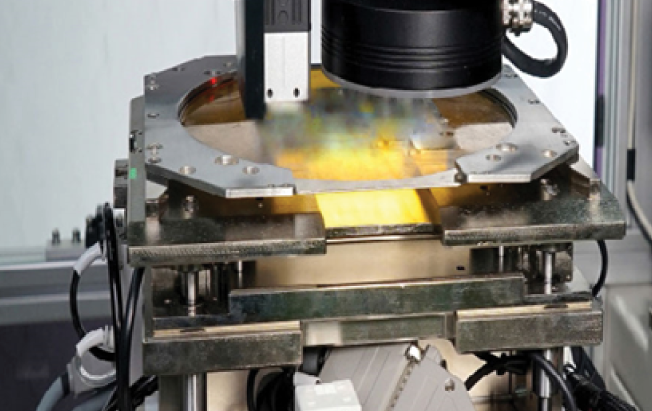

Top Vision Inspection
WI 300 Wafer Inspection Machine is designed to deliver utmost flexibility to support top vision inspection for fabricated components on wafer such as lens, LED & IC packages from 4” tiles to 6” wafer. With unique blend of flexibility and high performance, it makes an ideal inspection solution for automation industry.
Features
- High-Resolution Camera
- Selection from 5MP to 65MP mono/colour camera imaging technology
- Wafer Die and Wire Bond Inspection
- Cosmetic and Wire Bond Checking
- Auto Alignment Function
- 2D decoding and Position Recognize (PR) vision
- Real-Time Wafer Map Display

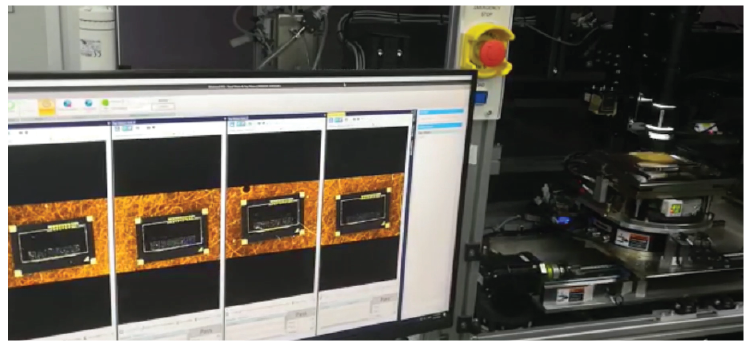

- All inspection information, such as mapping maps and defect region inspection results, is visualized for easy reading
- Supports Common Wafer Map Output Formats
- STIF Files
- Minimum Defect Size
- 5μm x 5μm
- Confocal Displacement Sensor
- For warpage detection and height compensation up to 2mm
-
Multiple Unit Inspection in a Single Grab

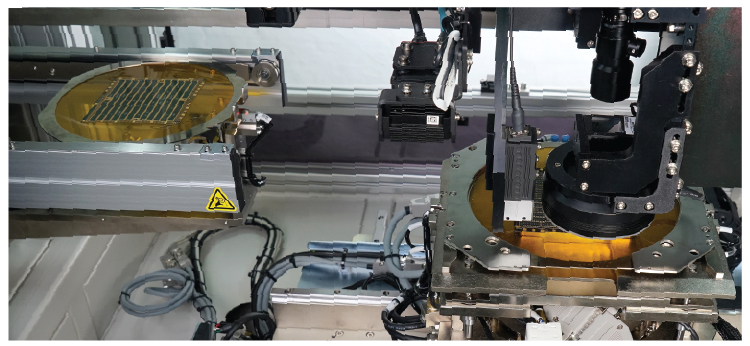

Fully Auto Wafer Inspection / WI300
Modules
- Input
Wafer Magazine - XY Stage
- Wire Bond Vision Inspection
- Output

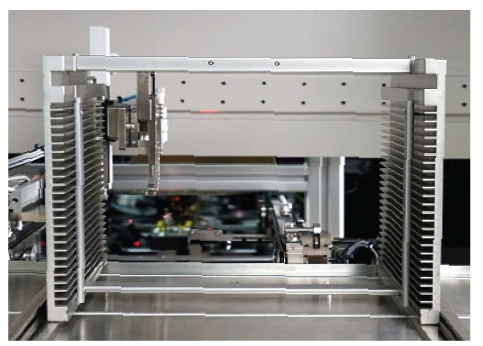

Wafer Magazine

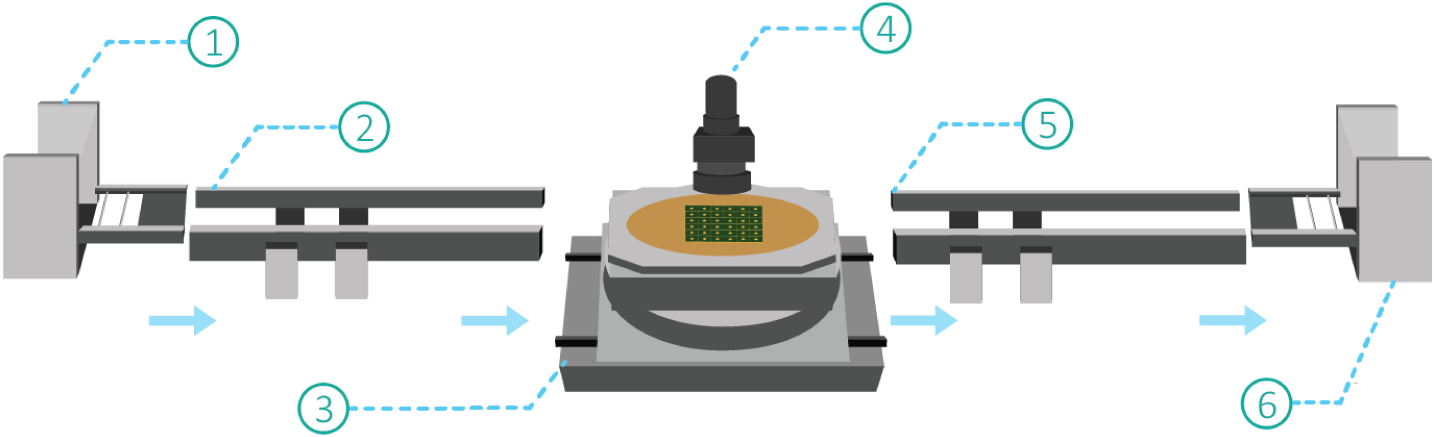

Flowchart
Transfer of wafer ring from the upstream machine or wafer magazine to the XY stage.
2D decoding and PR vision.
Wire bond vision inspection.
Transfer to the downstream machine or output after inspection is complete.
Wafer Ring (4 – 6 inches)
PCBA Tiles
Top Inspection

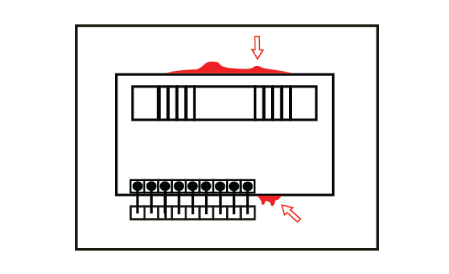

Glue Overflow in terms of Y

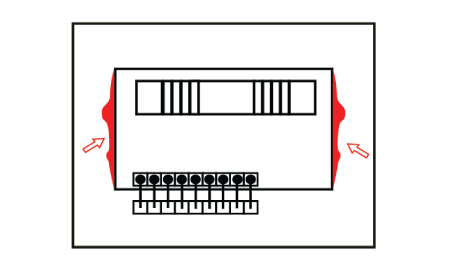

Glue Overflow in terms of X
Glue on Die
Die Missing

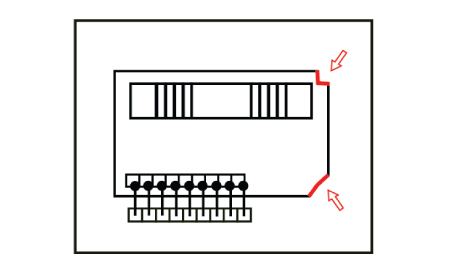

Die Chip

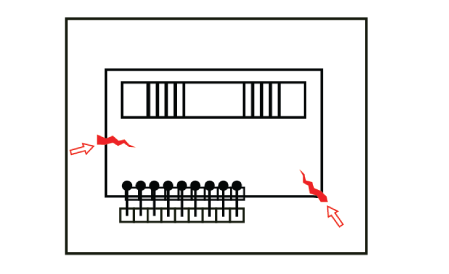

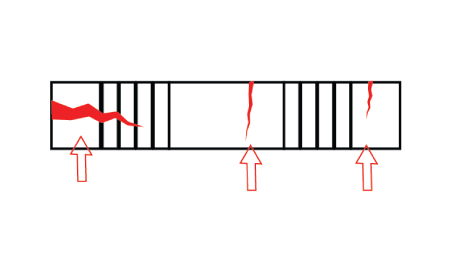

Die Crack

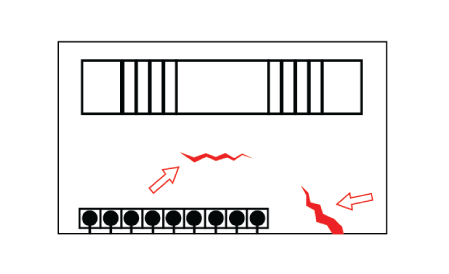

Die Scratches at Non-active Area

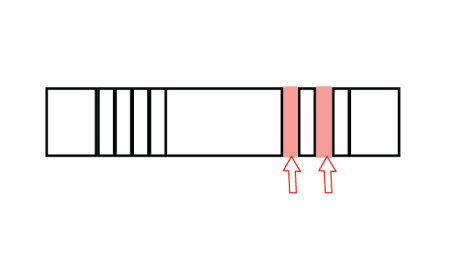

Die Scratches in PD Area

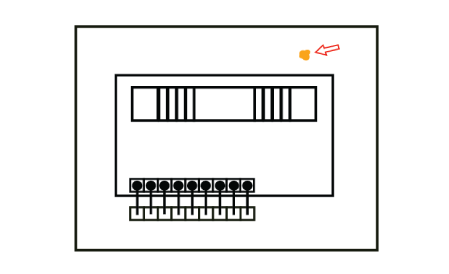

Foreign Material on PCB

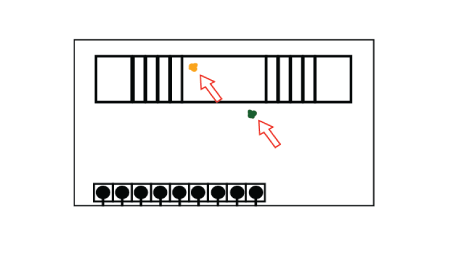

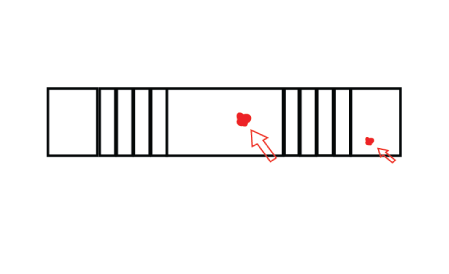

Foreign Material on Die

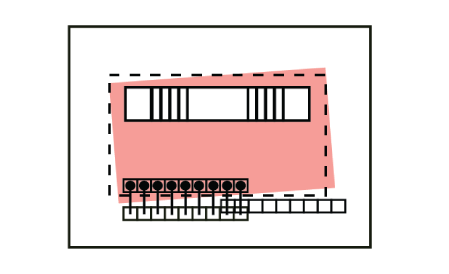

Die Rotation

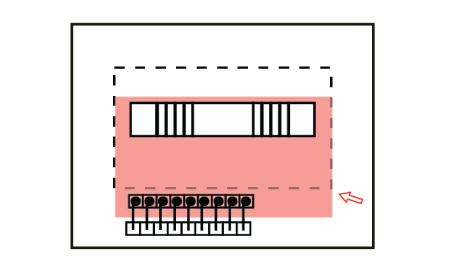

Die Misalignment

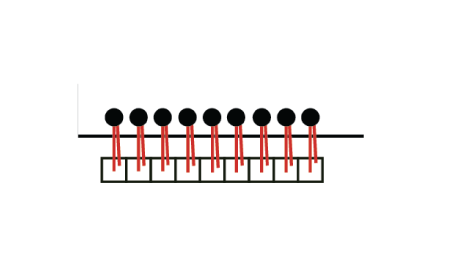

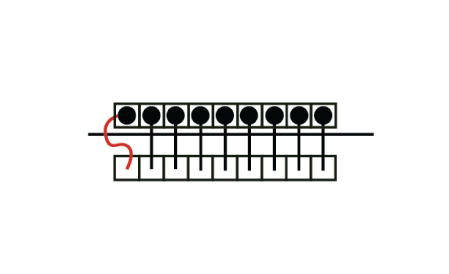

Wire Sweep

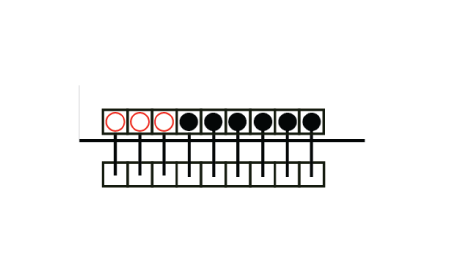

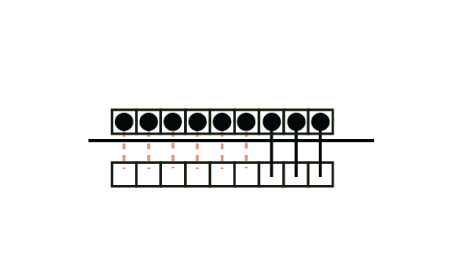

Missing Wire

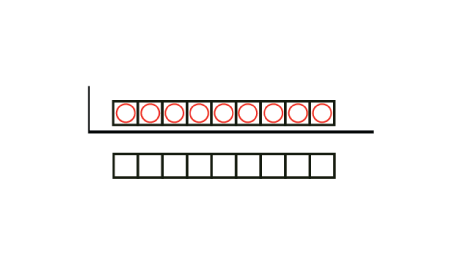

Non-stick on Pad (NSOP)

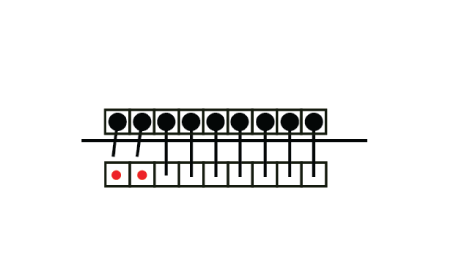

Non-stick on Lead (NSOL)
Unbonded

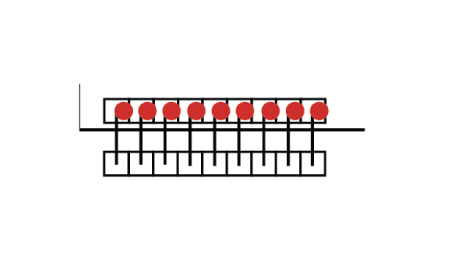

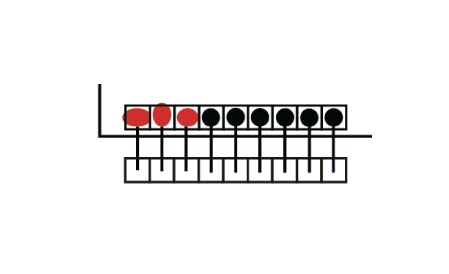

Smash Bond
Bond Offset
Double Bond

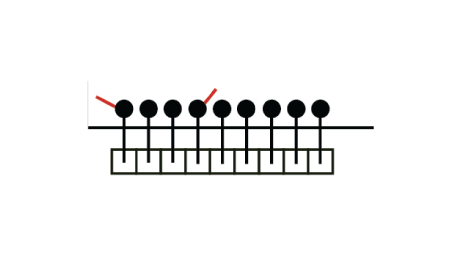

Bond Tail

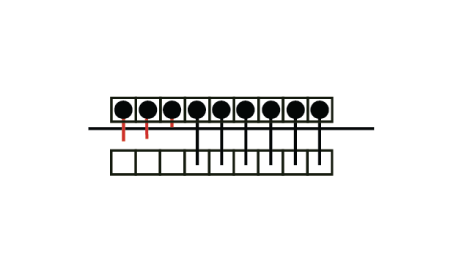

Broken Wire
Vision Specifications
| Top Vision | ||
| Camera | 65MP Area Scan (Color) | |
| Accuracy | +/-3.5μm | |
| FOV (H x V) | 14.9mm x 11.2mm | |
| Magnification | 2x | |
| PR Vision | ||
| Camera | 1.3MP Area Scan (Mono) | |
| Accuracy | +/-0.25mm | |
| FOV (H x V) | 150mm x 110mm | |
Machine Specifications
| Products | 4” – 6” wafer | |
| Specifications | Input: | Tiles, Wafer, Wafer rings |
| Output: | Tiles, Wafer, Wafer rings | |
| UPH | 10K (single grab), 20K (multiple grab)
(depending on user product) |
|
| Vision Inspection | Wire Bond and Cosmetic | |
| Footprint | 1250mm (W) x 2400mm (L) x 2050mm (H) | |
| Warranty | 1 year limited excluding wear and tear parts | |
