Flash Module Inspection Machine | FMI4000

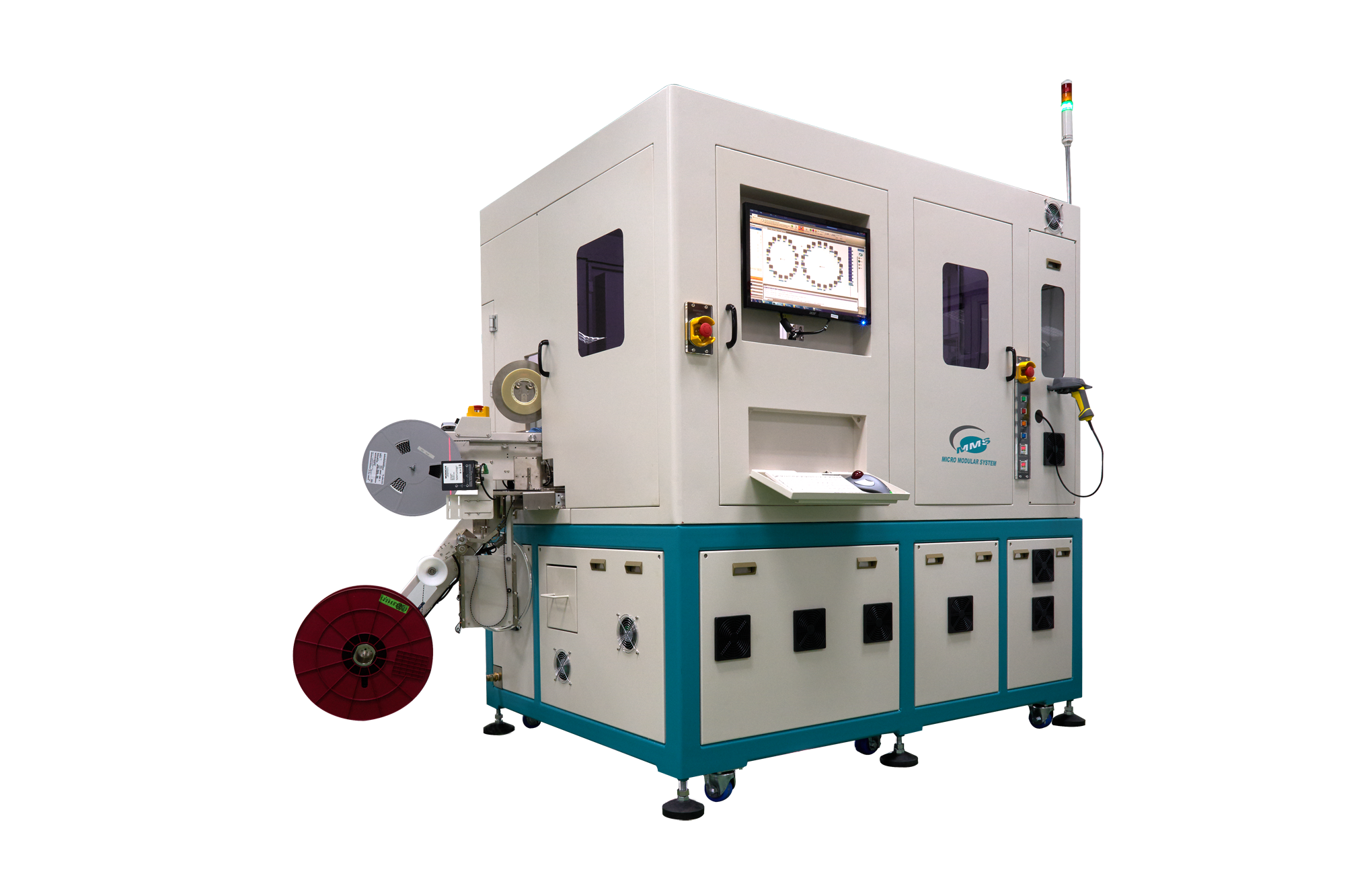

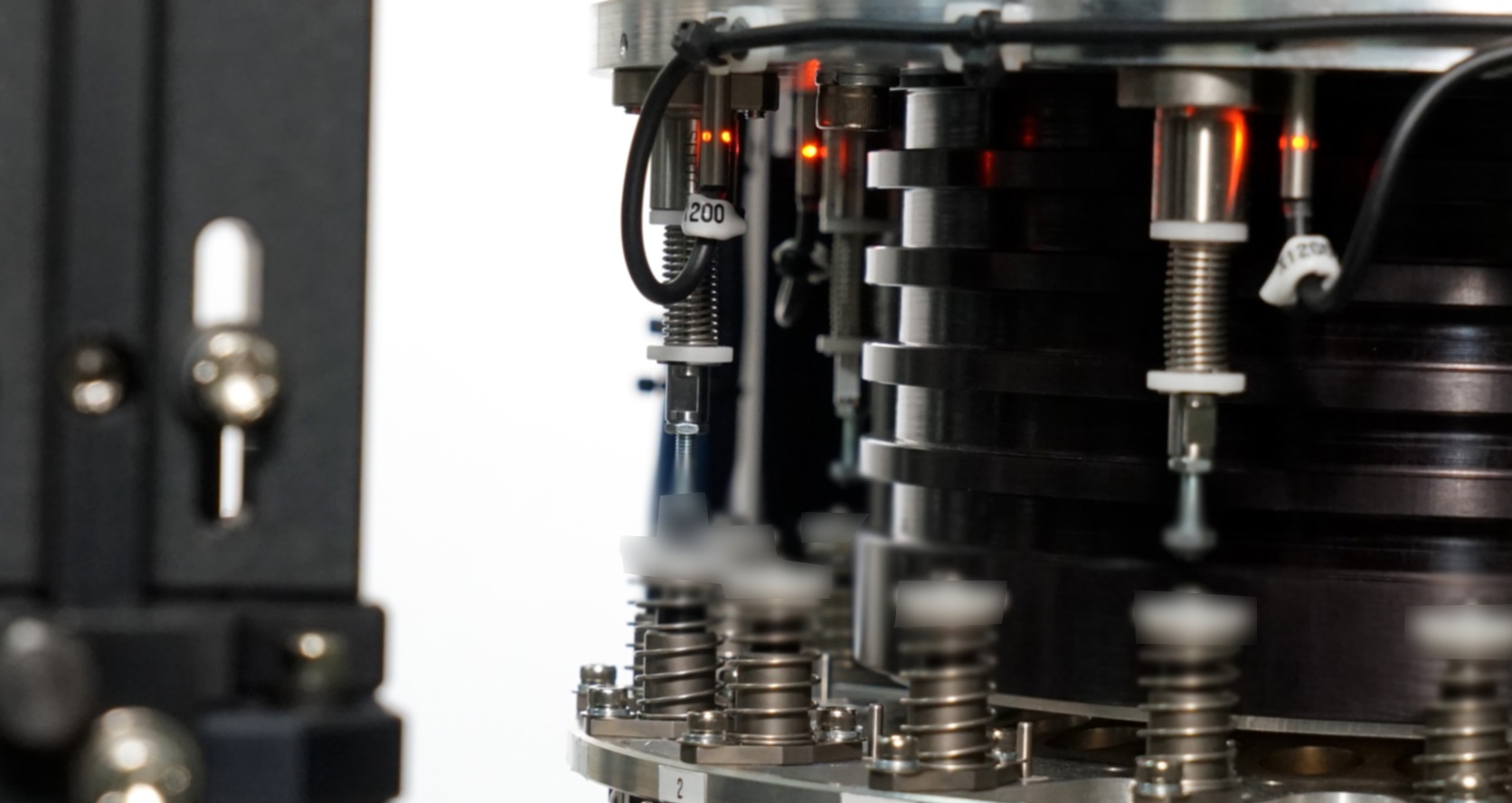

The FMI4000 is a high-speed flash inspection machine designed to perform 6S vision inspection on flash modules. Each vision inspection station conducts a series of cosmetic checks on different parts of the loaded product, ensuring every section is thoroughly inspected for all types of cosmetic defects before transferring the units to the included tape-and-reel output. A customizable input/output mapping system allows users to define how results are processed, supporting improved decision-making.

Advantages

Features

Input magazine with 6” wafer ring
Panel vision system
PR vision inspection for unit positioning
Top vision inspection to check cosmetics of Fresnel and holder
Bottom vision inspection to check cosmetics, PCB/pads, and OCR
4S vision inspection for cosmetic checking

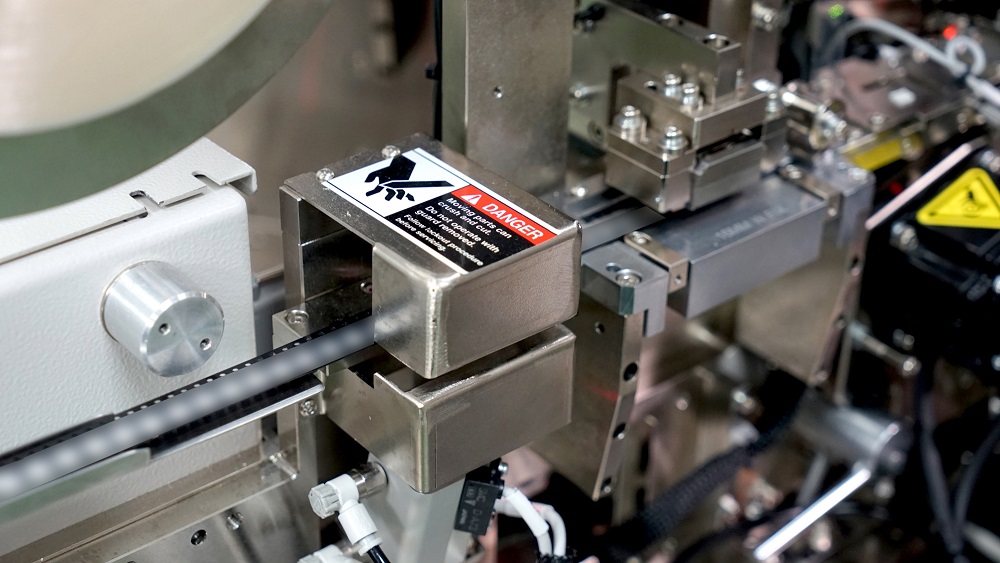

Output to tape and reel
Customizable input/output mapping
Optional NAS system for expanded image storage

Applicable Products

Flash Module

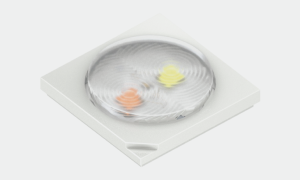

Twin-lens LED flashlight component for automated optical inspection system

Multi-lens LED optics inspected using automated optical inspection system

Inspection Criteria

6S Vision Inspection ( Top, Bottom, & 4 Sides)

Holder Short Mold

Fresnel Short Mold

Dents

Scratches

Foreign Material

Contamination

Bubbles

Black Dot

Burr

Chip Off

Deform

Crack

2D Measurement

Ejector Pin Flash

Identification

Specification

Machine Specification

Products	Flash Module
Specifications	Input:	Tray, Wafer rings, Tape
	Output:	Tape & Reel, Tray, Wafer rings
Vision Inspection	Cosmetic and measurement
UPH	Up to 7500 (Depending on configuration and die size)
Footprint	1750mm x 1300mm x 1850mm
Warranty	1 year limited excluding wear and tear parts

What is Automated Visual Inspection (AVI)?

Automated Visual Inspection (AVI) is a technology used to automatically inspect and detect defects or anomalies in products or components using visual analysis. It involves the use of machine vision systems and artificial intelligence algorithms to identify defects and make pass/fail decisions.

What are the benefits of using Automated Visual Inspection?

Automated Visual Inspection can provide faster and more accurate inspection results, leading to improved product quality and reducing the number of defective products entering the market. It can also help to increase production efficiency and reduce inspection costs by eliminating the need for manual inspection.

What factors should I consider when choosing an Automated Visual Inspection system?

Some key factors to consider when choosing an Automated Visual Inspection system include the type and complexity of the inspection task, the speed and accuracy requirements, the level of automation required, and the compatibility with other manufacturing systems.
