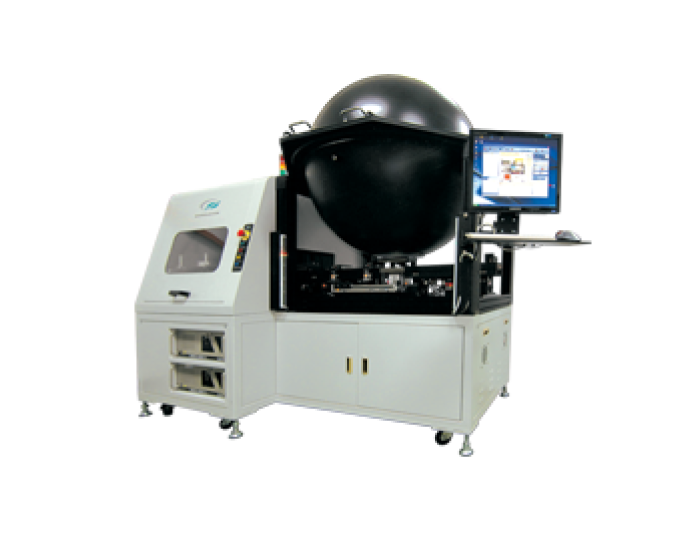

LED tester machine for high-precision testing of light output, color, and intensity in LED components

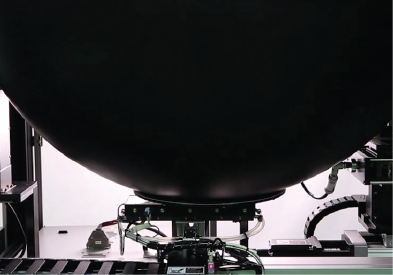

Close-up of integrating sphere used in LED tester machine for measuring luminous flux and color accuracy

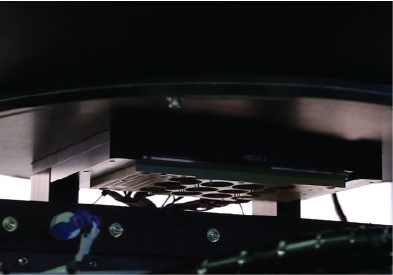

Internal view of LED tester machine showing test head and fixture for component alignment
LED component tray positioned for automated testing inside advanced LED tester machine

LED Array Tester Machine | AT100

Maximise accuracy and efficiency in your production with our state-of-the-art LED tester machine. The AT100 Test System runs comprehensive optical and electrical tests, including dim testing and variable optical analysis, ensuring that every LED meets the highest quality standards. The system can process approximately 100 substrates per hour and adapts to your production speed based on the number of LEDs and test requirements. A built-in heating element allows for temperature-dependent tests ranging from 25°C to 100°C, ensuring performance stability across varied conditions.

Flexible input options such as magazines or conveyors, enable the system to function independently or integrate seamlessly into your production line. Its automatic magazine and array ID checks guarantee flawless operation, eliminating the risk of errors. Additionally, the system supports integration with different tester systems, providing a tailored testing experience to fit your needs.

For even more streamlined production, pair your LED tester machine with our PCB loader unloader to optimise handling and efficiency.

Ready to enhance your LED testing process? Contact us today to get started!

Whatsapp

Introduction

Dim Test

Optical Test

The AT100 is a fully auto testing machine for Chip-On-Board. It is capable of running dim test, optical test and electrical test. With variable inputs like magazine or conveyor, the system can be run stand-alone or seamlessly integrated into a production line. A wide range of form factors can be tested by switching the probe cards.

The system processes 100 substrates per hour, depending on the number of LEDs on the substrate and the test time.

Download PDF

Advantages

Features

  • Turnkey solution for fully automated LED array test
  • Conveyor or magazine input, compliant with SMEMA standard
  • Automatic magazine orientation and jamming detection
  • Automatic substrate orientation and ID check
  • Optional high-temperature test between 25°C and 100°C
  • Quick and easy conversion in under 1 hour by changing Probe Card for different products

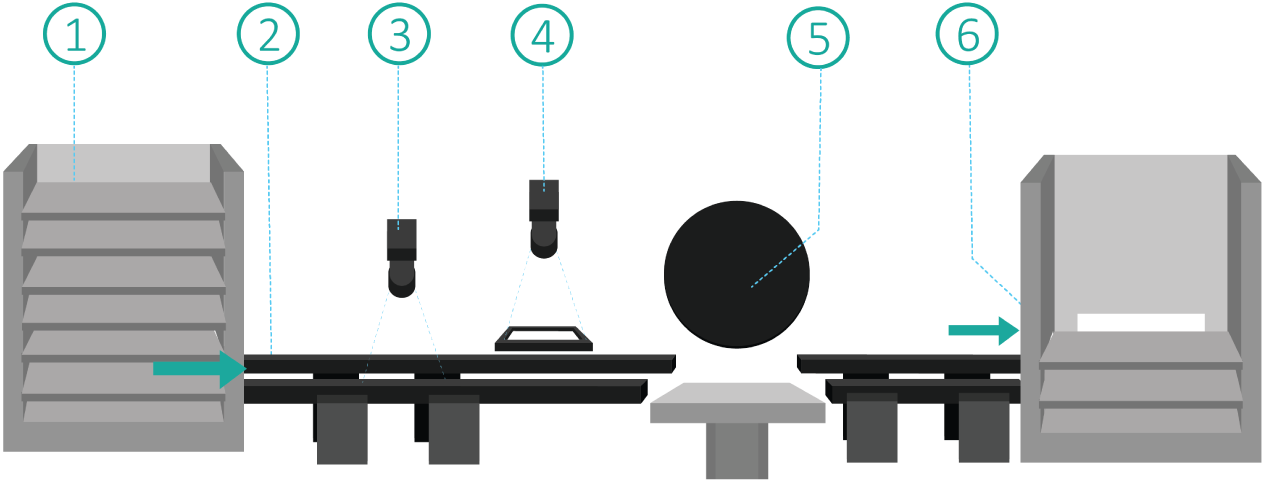

Machine Overview

COB LED Test Machine / AT100

Modules

  1. Input
    Magazine or Conveyor (SMEMA)
  2. Conveyor
  3. ID Code Reader
    Determine the unit ID before test
  4. Dim Test
  5. Optical Test Station
    Optional High-Temperature Test between 25°C and 100°C
  6. Output
    Magazine or Conveyor (SMEMA)

Flow Chart

Flowchart

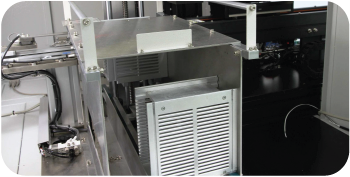

Magazine and SMEMA-compliant conveyor input module for LED tester machine substrate loading

Magazine or direct conveyor input (SMEMA-compliant).

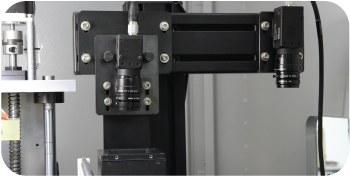

LED tester machine with ID code reader module for automatic substrate identification before testing

ID Code Reader module indexes the substrates and determines the ID before testing.

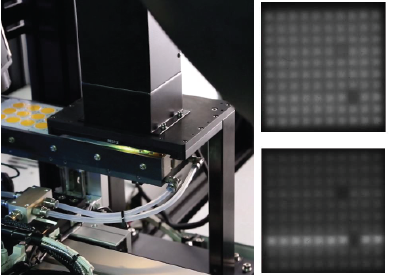

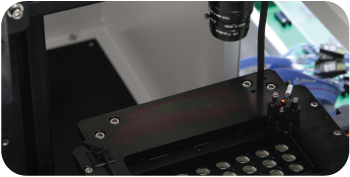

Substrate entering dim test module in LED tester machine for brightness and electrical testing

The conveyor carries the substrate to the dim test module for testing.

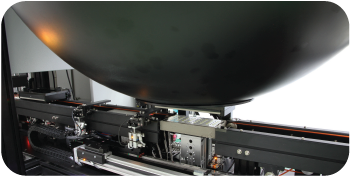

Controlled high-temperature testing chamber in LED tester machine for thermal performance analysis

Controlled high-temperature test between 25°C and 100°C.

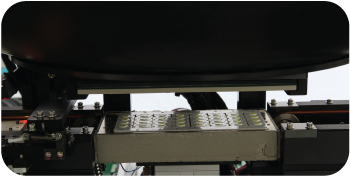

Substrate lifted into integrating sphere for optical testing in automated LED tester system

The whole substrate is lifted into the sphere for optical testing. The substrate is carried back to the conveyor after testing concludes for output.

Applicable Products

LED arrays on substrates

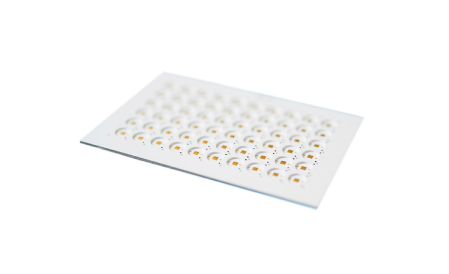

High-density LED array on white substrate board for uniform light distribution applications

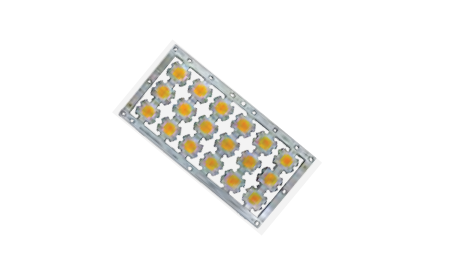

Compact LED array on metal-core PCB substrate designed for high-efficiency lighting systems

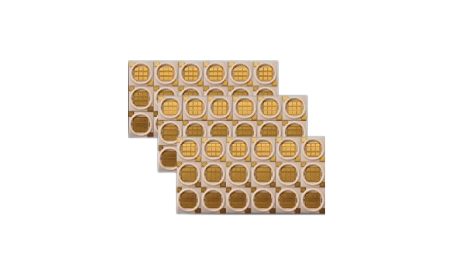

Gold-plated LED substrate array optimized for high thermal conductivity and precision mounting

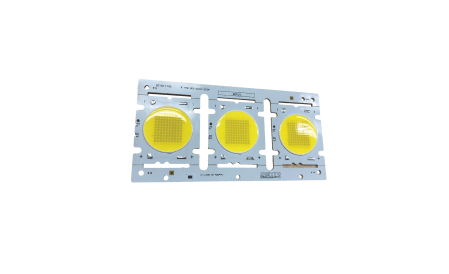

Large COB (chip-on-board) LED array on aluminum substrate for high-lumen output lighting modules

Test Parameter

Test Parameters

ID Check

To check the product serial number / date code through:

  • Barcode
  • QR Code
  • 2D Code

Dim Test

Light up the multiple die LED module in low current mode, to check:

  • Dim/ Bad LED die
  • Dim Row
  • Dim Column
  • Uniformity of the module

Functional Test

To perform electrical and optical measurement:

  • Peak wavelength
  • Centroid wavelength
  • Dominant wavelength
  • CIE x,y,z / u’,v’
  • CRI
  • CCT
  • Luminous flux & efficacy
  • FWHM
  • Color Purity
  • Radiant flux
  • Peak wavelength intensity
  • Forward current/voltage
  • Reverse current/voltage

Specification

Machine Specifications

Products LEDs in Arrays
Specifications Input: Substrate from Magazine or Conveyor (SMEMA)
Output: Magazine or Conveyor (SMEMA)
Test Options Dim test, Optical & Electrical test
UPH 100 Substrates (may vary depending on user product and configuration)
Footprints 2180mm (W) x 11550mm (L) x 2000mm (H)
Warranty 1 year limited excluding wear and tear parts
