3D Profiler System for Surface Topography and Height Measurement in Precision Manufacturing
3D Profiler System - Image 2

3D Profiler System

Whatsapp

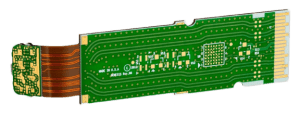

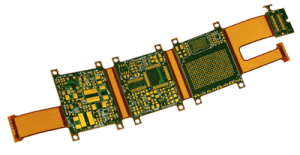

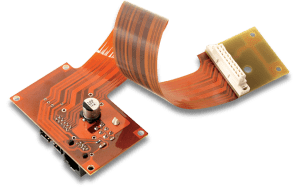

Flex Circuit

Applicable Products

Applicable product for Top or Bottom vision inspection system
applicable products for top or bottom vision inspection system
Applicable Products for Top or Bottom vision inspection system

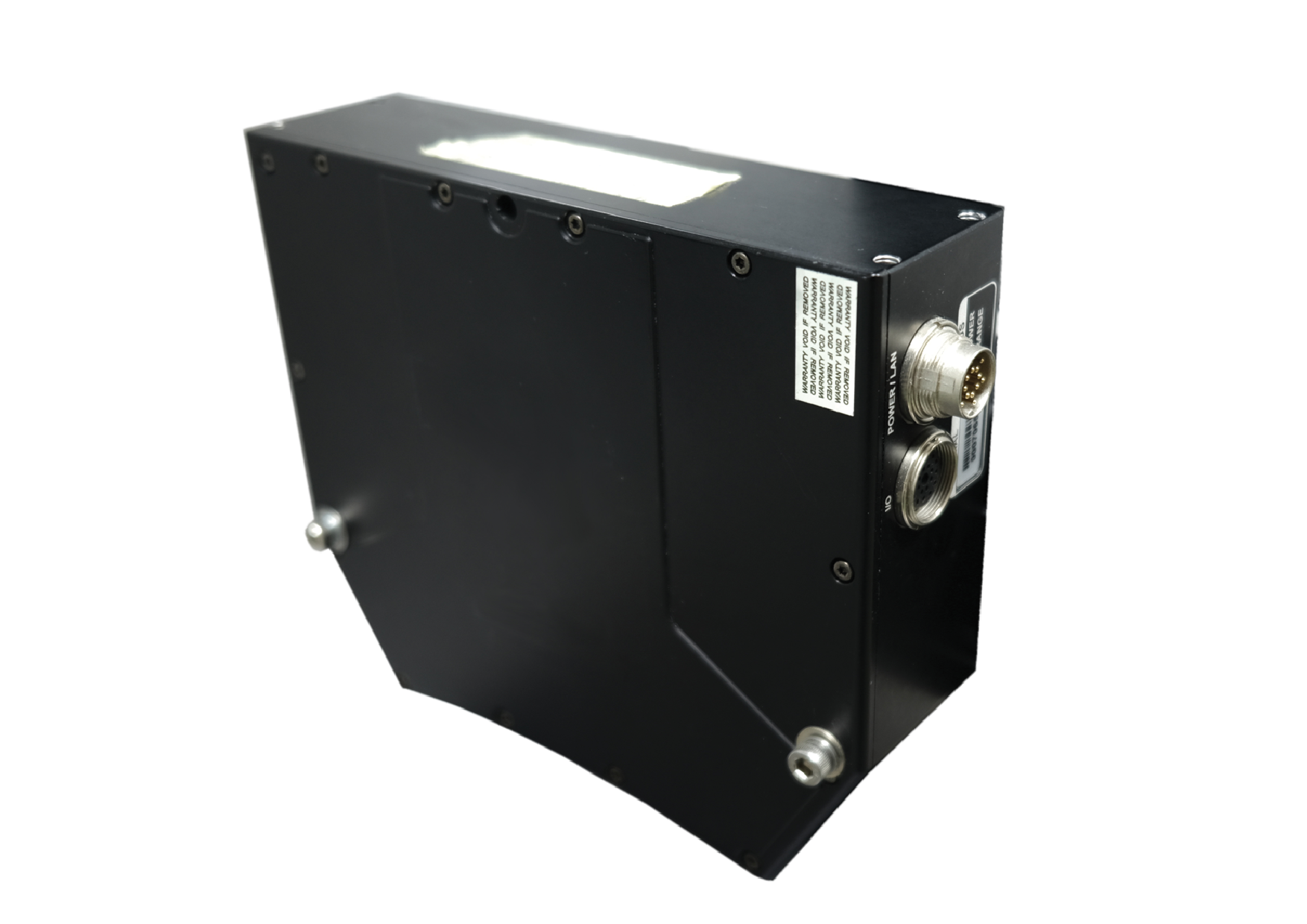

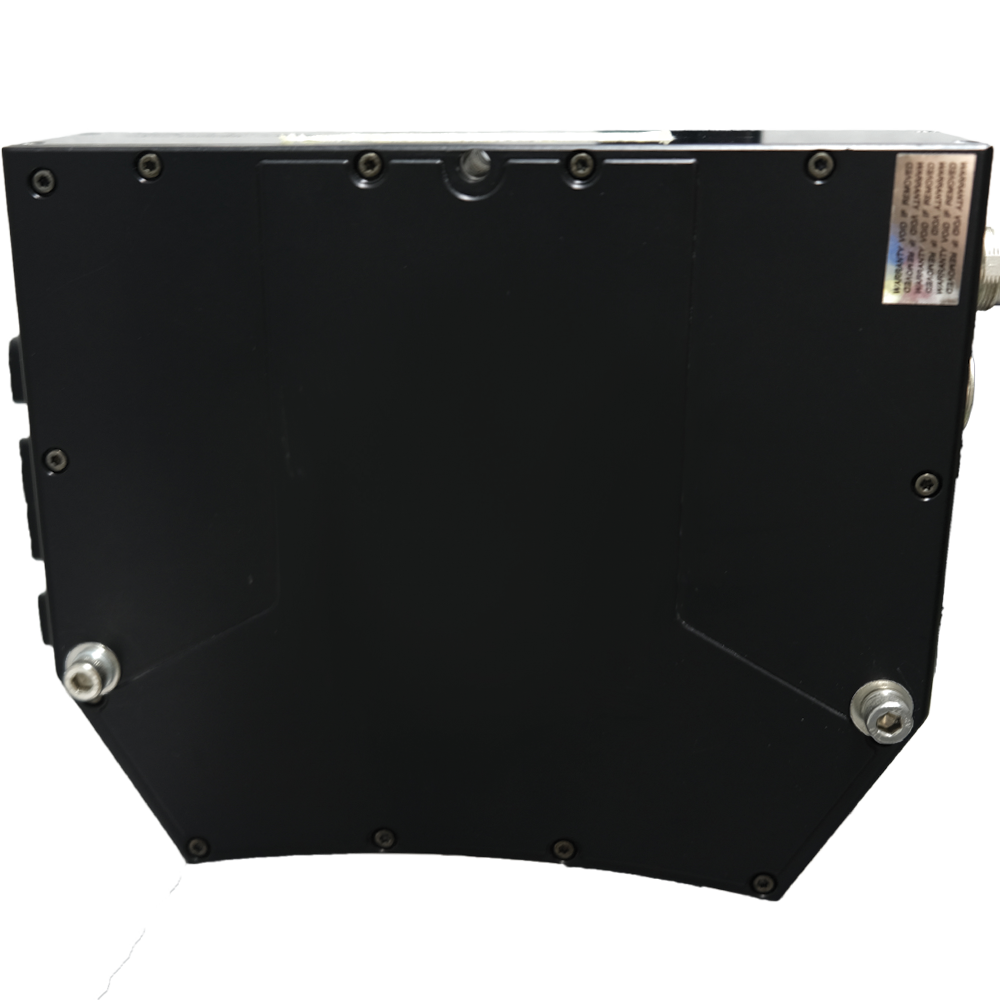

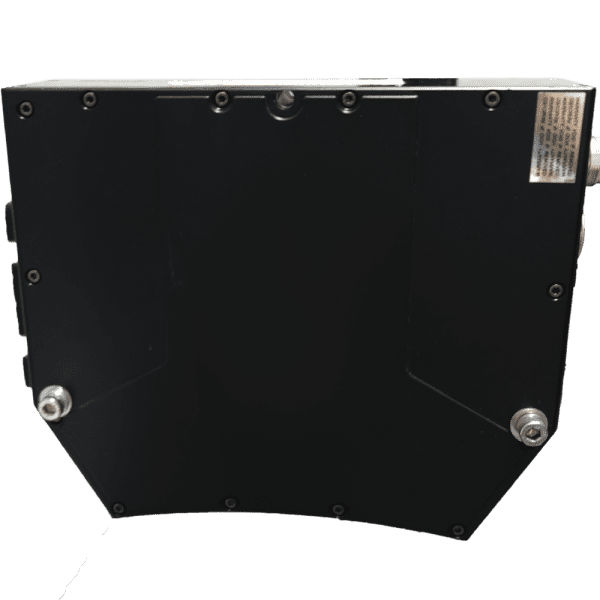

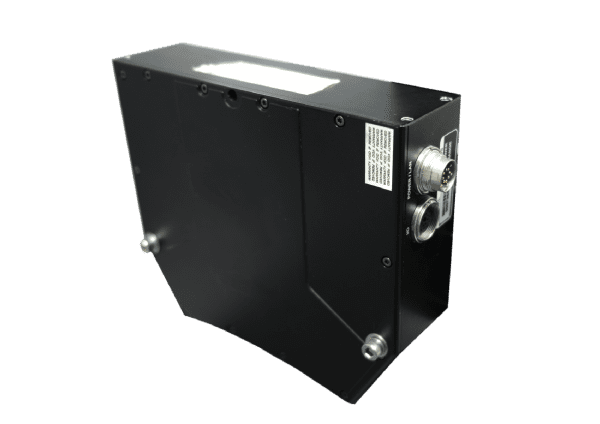

Camera 3D Profiler
Accuracy ± 13μm
FOV (H x V)> 110.0mm x 85.0mm
Resolution X 90.0μm – 130.0μm
Z 21.0μm – 32.0μm

*Specification can be adjusted accordingly*

Inspection Criteria

Wavy Edge

Wavy Part

Burr

Package

Applicable Products

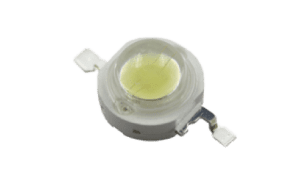

High-power round LED module with clear lens
Hexagonal yellow LED chip suitable for automated optical inspection

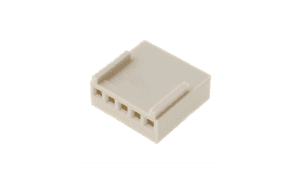

White plastic electrical connector, a molding part type processed by the Glass Turret AOI Machine for dimensional and cosmetic checks.

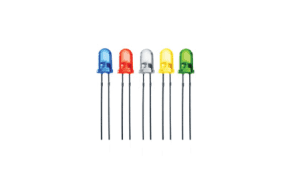

Assortment of colored through-hole LEDs, representing components verified by the Glass Turret AOI Machine during multi-angle inspection.
Area Scan
Camera 5MP 12MP
Accuracy ± 15.0μm ± 3.5μm
FOV (H x V)> 16.8mm x 14.1mm 7.0mm x 5.1mm
Magnification 0.5X 2X

*Specification can be adjusted accordingly*

Scratch

Dents

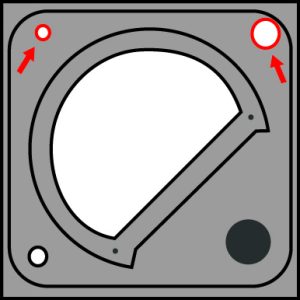

Ejection Pin Protrusion

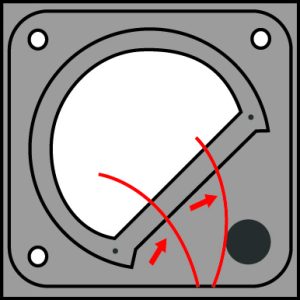

Weld Line

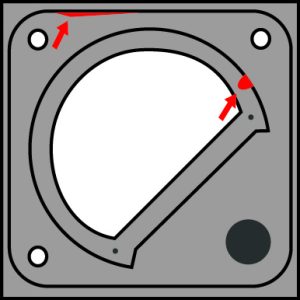

Short Mold

Deformation

Foreign Material/ Stain/ Contaminant

Gate Vestige

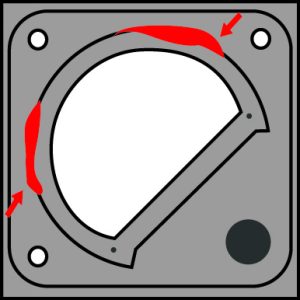

Epoxy Bond Line

Glass Chip-Off /Crack Line

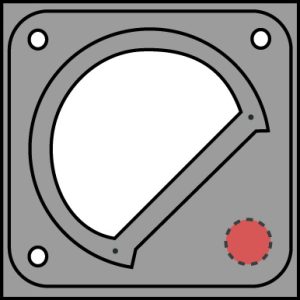

Incomplete Mold

Missing Plating

Over Plating

Plating Protusions

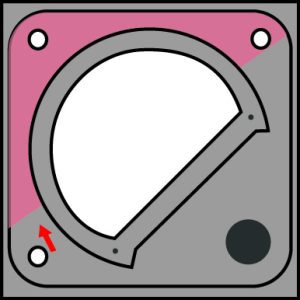

Discoloration

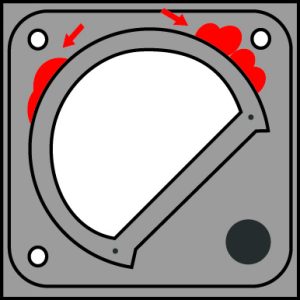

Flash/ Burr

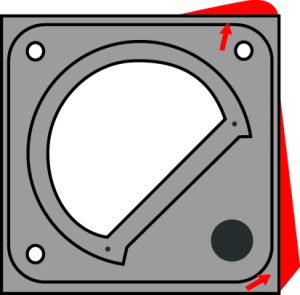

Bumps Air/ Gas Trap Protruding

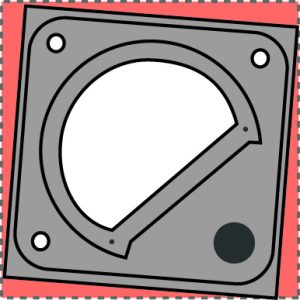

Window Offset

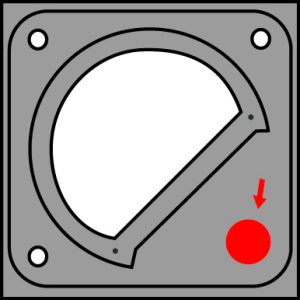

Air/ Gas Trap

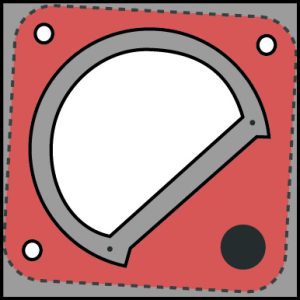

Phospor Offset

Sink Mark

Missing Component

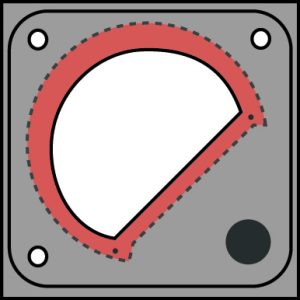

Beam Block Offset

Air/ Gas Trap

Phospor Offset

Mixed Parts

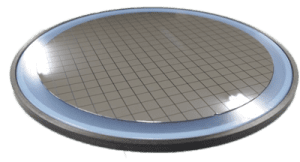

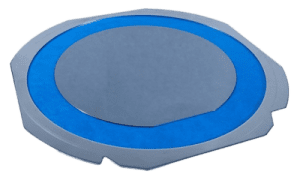

Wafer

Applicable Products

Camera 5MP 65MP
Accuracy ± 7.0μm ± 3.5μm
FOV (H x V)> 8.4mm x 7.0mm 14.9mm x 11.2mm
Magnification 1X 2X

*Specification can be adjusted accordingly*

Foreign Material

Detection of foreign material on wafer using wafer inspection machine

Edge Debris

Edge Burr

Die Crack

Die inspection reveals a red fracture across the surface

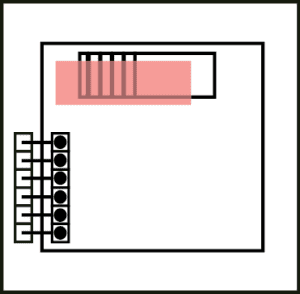

Die Position

Die Placement

Un-separated area on wafer detected during top inspection

Die Chip Off

Edge chipping found during wafer top inspection

Die Scratches

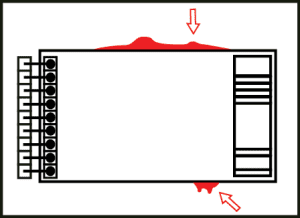

Glue Overflow

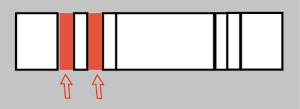

Missing Die

Wirebond

Applicable Products

Camera 5MP 65MP
Accuracy ± 7.0μm ± 3.5μm
FOV (H x V)> 8.4mm x 7.0mm 14.9mm x 11.2mm
Magnification 1X 2X

*Specification can be adjusted accordingly*

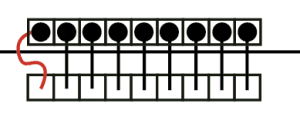

Wire Sweep

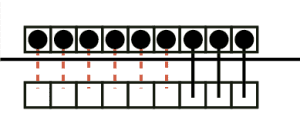

Missing Wire

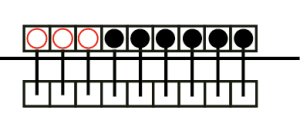

Non-Stick on Pad (NSOP)

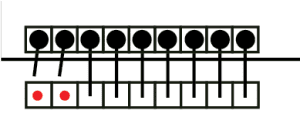

Non-Stick on Lead (NSOL)

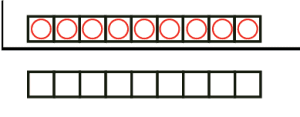

Unbonded

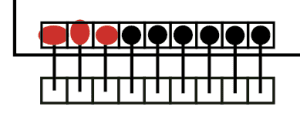

Smashing Bond

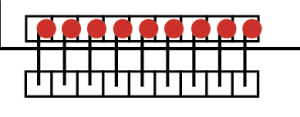

Bond Offset

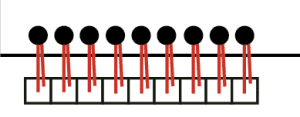

Double Bond

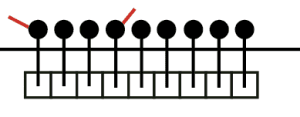

Bond Tail

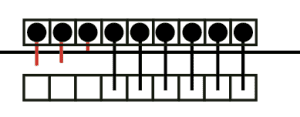

Broken Wire
