Surface Texture Change

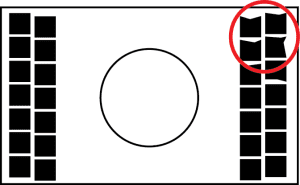

Pad Dents
Pad Scratches

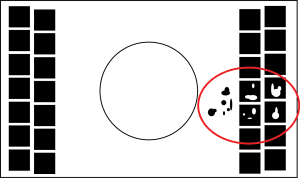

Foreign Material/ Corrosion

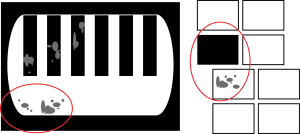

Unclean Surface
Pad Dimension
Pad Hill

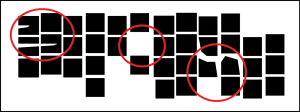

PI Etching; (Incomplete, Missing, Irregular)
Burr
Missing Pad/ Holes

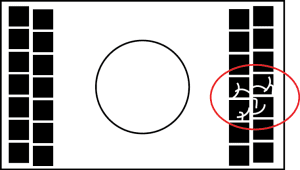

Scratches
Contamination

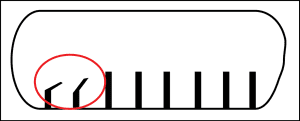

Bent Lead

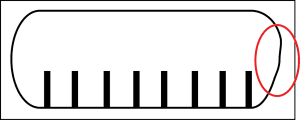

Deformed Punch
Open Circuit

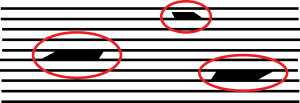

Short Circuit
Poor Fiducial Definition -Low Contrast
Poor Fiducial Definition -Contaminant
Bimodial Lead Length/ Width

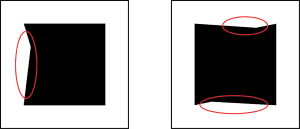

Sprocket Damage
Applicable Products
| Area Scan | |||||
| Camera | 71MP | 120MP | |||
| Accuracy | ± 12.4μm | ± 12.5μm | |||
| FOV (H x V)> | 62.0mm x 43.0mm | 83.0mm x 57.0mm | |||
| Magnification | 0.5X | 0.35X | |||
*Specification can be adjusted accordingly*
| Line Scan | |||
| Camera | 16K | ||
| Accuracy | ± 18.0μm | ||
| FOV (H X v) | 102.4mm x 140.0mm | ||
| Magnification | 0.8X | ||
*Specification can be adjusted accordingly*
